| Model No. + Lamp Code | CCT | Finish | OA | Option Code |
| LH109-L24 | 27K | PT Powder Coated* | ‘OA’ + Overall Height in Inches (ie. OA96) | EML Emergency Battery Pack with |
| 30K | BA Brushed Aluminum | LED Lighting (Remote) | ||
| 35K | NT Nickel Touch | WH1 White Power Cord | ||
| 40K | GT Gold Touch | BK1 Black Power Cord | ||
| ZT Bronze Touch | BAC Buy America; Buy American Act; | |||
| CT Copper Touch | and Build America, Buy America Act | |||
| TT Toffee Touch | Compliant. | |||
| PWT Pewter Touch | ||||
| BST Blackened Steel Touch | ||||
| CC Custom Painted Finish |
*(Specify Color Code from the list of Powder Coating Finishes)
|
DIMENSIONS
| BASE MODEL NO. | OAH | H | DIA |
| LH109-L24 | 50″ | 20″ | 15 3/4″ |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Opal Matte Acrylic Bottom Lens
• Spun Aluminum Shade

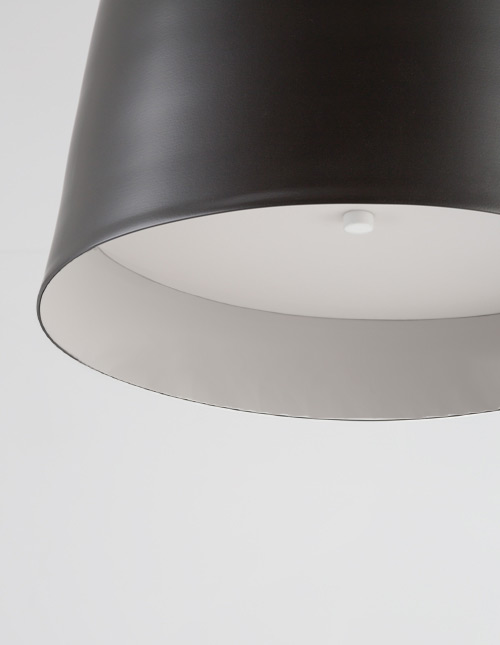

• Powdercoated Matte White Interior (Consult Factory for other options)

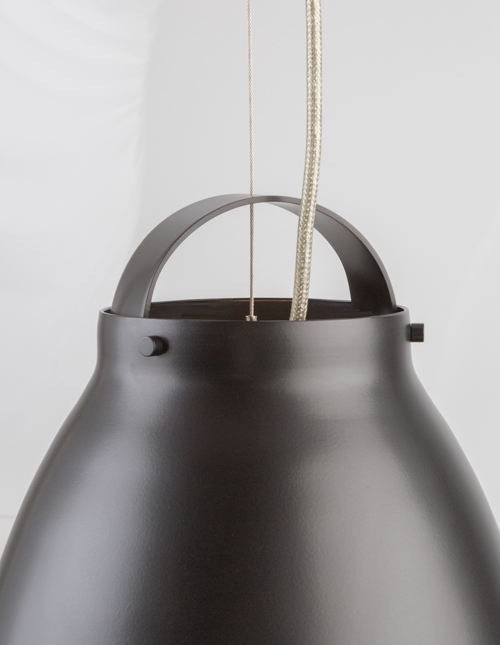

• Silver Braided Power Cord with (1) Adjustable Aircraft Cable
• LED 0-10V Dimming Driver
LIGHT OUTPUT
LXX = ~ 60 LPW Delivered Lumens (Example: L16= 16W x 60LPW = 960 Lumens)
