| Model No. + Lamp Code | CCT | Finish | OA | Option Code |
| LH107-L24 | 27K | PT Powder Coated Finishes* | ‘OA’ + Overall Height in Inches (ie. OA96) | EML Emergency Battery Pack with |
| 30K | XT Trending Brushed Metal Finishes* | LED Lighting (Remote) | ||
| 35K | PF Pure Metal Finishes* | BAC Buy America; Buy American Act; | ||
| 40K | CC Custom Painted Finish | and Build America, Buy America Act | ||
| Compliant. | ||||
| *(Specify Color Code from the list of Finishes – ie. Gold Touch would be ‘GT’) | ||||
DIMENSIONS
| BASE MODEL NO. | OAH | D | W |
| LH107-L24 | 50″ | 8″ | 29 1/2″ |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Opal Matte Glass
• Driver in Canopy

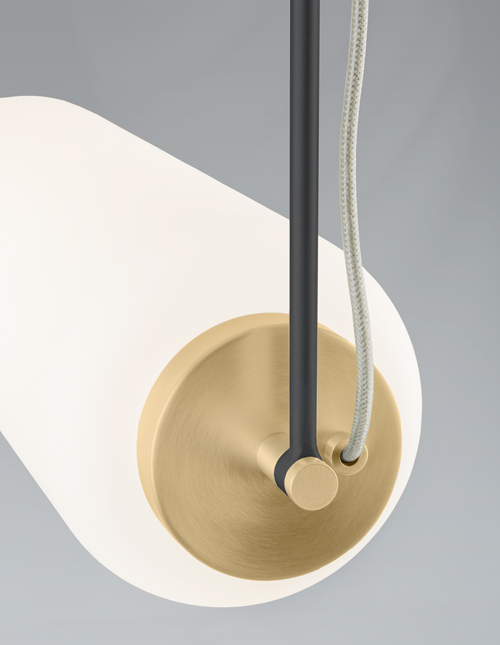

• Clear Silver Braided Cord with (2) Adjustable Aircraft Cables with Matte Black Cord Sleeves
• LED 0-10V Dimming Driver
LIGHT OUTPUT
L24 = ~ 100 LPW Delivered Lumens (Example: L24= 24W x 100LPW = 2,400 Lumens)
