| Model No. + Lamp Code | CCT | Finish | OA | Option Code |
| LH102-16-L16 | 27K | PT Powder Coated Finishes* | ‘OA’ + Overall Height in Inches (ie. OA96) | EML Emergency Battery Pack with |
| LH102-21-L24 | 30K | XT Trending Brushed Metal Finishes* | LED Lighting (Remote) | |
| LH102-30-L42 | 35K | PF Pure Metal Finishes* | 1S3AC Single Stem with 3 AC Cables | |
| 40K | CC Custom Painted Finish | BAC Buy America; Buy American Act; | ||
| and Build America, Buy America Act | ||||
| Compliant. | ||||
| *(Specify Color Code from the list of Finishes – ie. Gold Touch would be ‘GT’) | ||||
DIMENSIONS
| BASE MODEL NO. | OAH | H | DIA |
| LH102-16-L16 | 60″ | 4.5″ | 16″ |
| LH102-21-L24 | 60″ | 6″ | 21″ |
| LH102-30-L42 | 60″ | 8.5″ | 30″ |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES

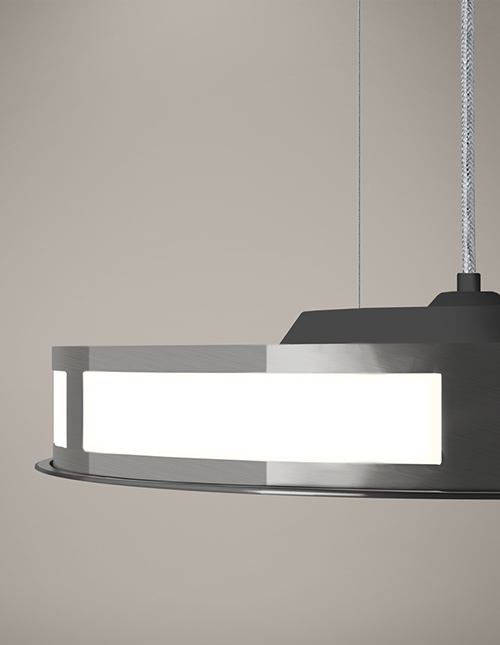

• Opal Matte Acrylic Diffuser
• Clear Silver Braided Cord with (3) Adjustable Aircraft Cables
• LED 0-10V Dimming Driver
LIGHT OUTPUT
L24 = ~ 113 LPW Delivered Lumens (Example: L24= 24W x 113LPW = 2,712 Lumens)
