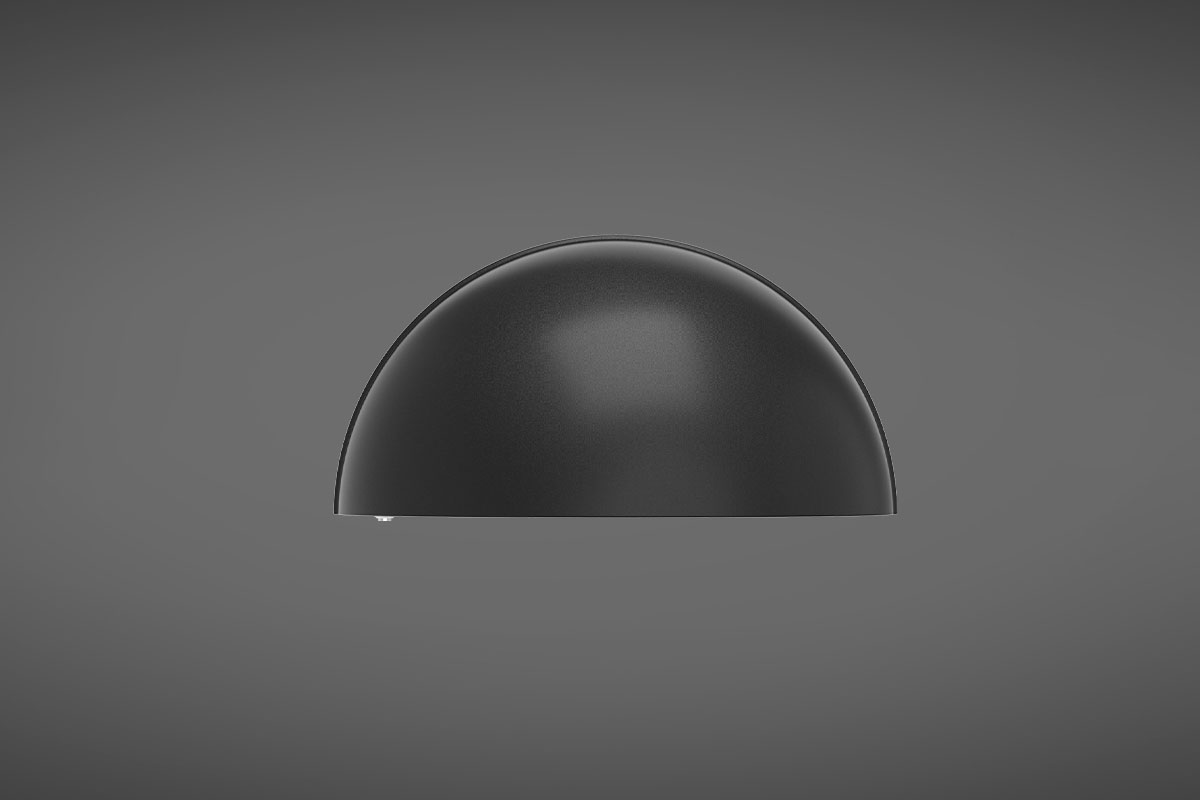

 Product Cutsheet

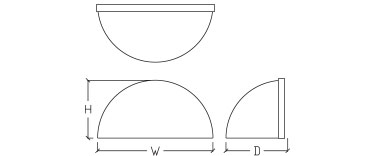

DIMENSIONS

W H D MC BASE MODEL NO.
13″ 7″ 6 7/8″ 3 1/2″ S9470i-L24
13″ 7″ 6 7/8″ 3 1/2″ S9470i-L32
13″ 7″ 6 7/8″ 3 1/2″ S9470i-L40
SPECIFICATIONS

Driver: 0-10V dimming, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required  (by others).

FEATURES

• 3000/3500/4000K on-board optional CCT
• 24/32/40W on-board optional outputs
• IP65 Rating
• Type 3 Distribution Pattern
• Tempered Glass Lens
• Downlight Suitable for Wet Location
• Uplight Suitable for Damp Location
• UL Listed for Wet Location
• Full Cut-off Distribution
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S9470i-L24 + 30K + PT NT + Option
S9470i-L32 35K GT PWT
S9470i-L40 40K CT BST
ZT TA
TT
FINISHES
GT Gold Touch
CT Copper Touch
ZT Bronze Touch
TT Toffee Touch
NT Nickel Touch		 PWT Pewter Touch
BST Blackened Steel Touch
TA Textured Anthracite
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes [except interior only metallics]).
For specialty finishes consult factory.
OPTIONS

IEML Integral Emergency 9W Driver
PC Photocell

LIGHT OUTPUT

LXX = ~ 135 LPW Delivered Lumens (Example: L16 = 16W x 135LPW = 2,160 Lumens)

** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.

SPECIAL FEATURES (these features come on all models)
3 Color Temperatures
On board switch allows for on-site adjustment to 3000/3500K/4000K options.

Note: For factory Pre-set, please indicate the CCT
in the part number (ex: S9470-L24-35K-BL)

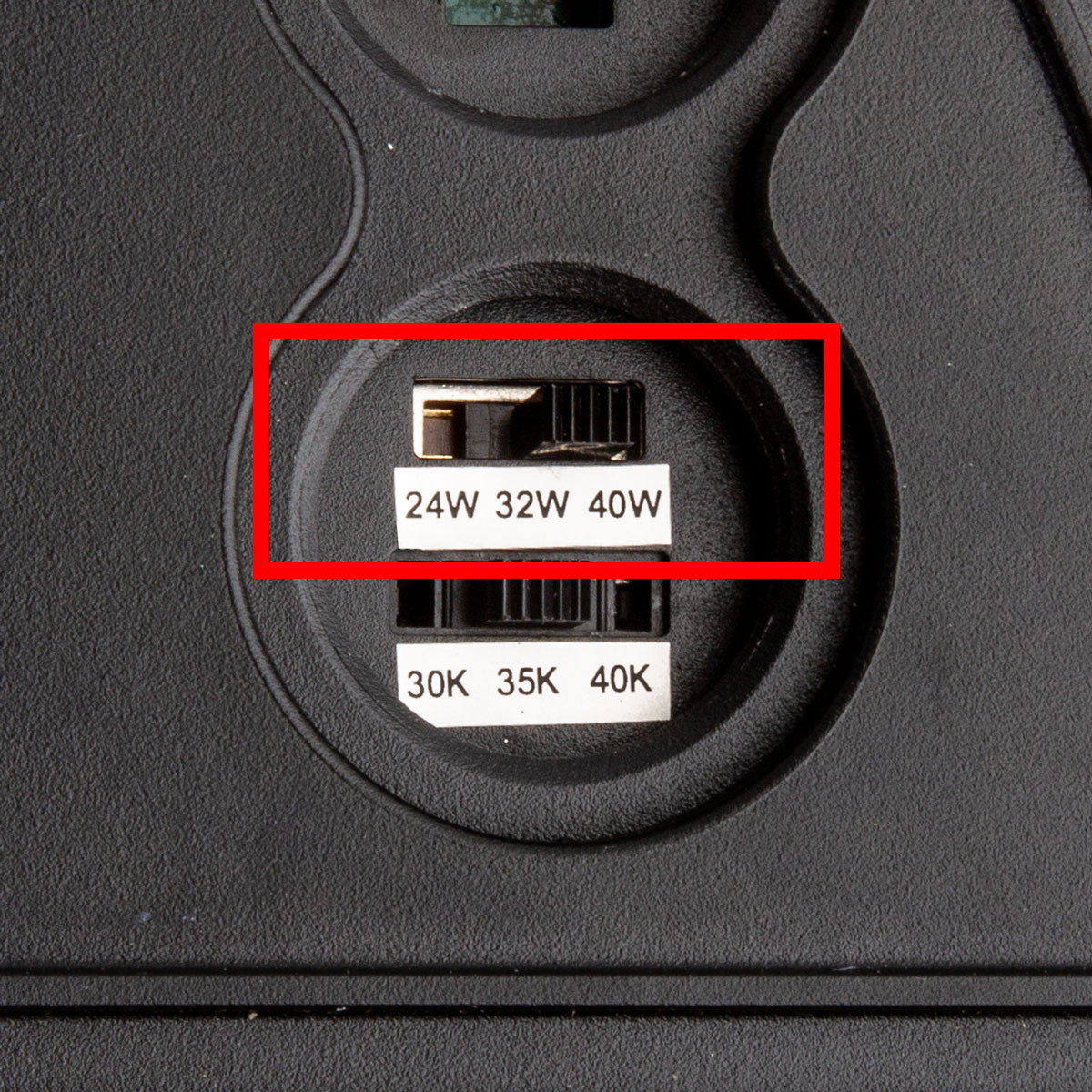

3 Power Levels
On Board Switch allows for on-site adjustment to 3 power levels.

40W/32W/24W

Note: For Factory Pre-Set Watts, please indicate the Watts
in the part number (ex: S9470-L32-30K-BZ)
Photosensor
On Board Sensor and Switch allows an internal photocell to be turned on or off as needed.

NOTE: For Factory Pre-Set to ON, please indicate
in the part number (ex: S9470i-L24-40K-BST-PS)
