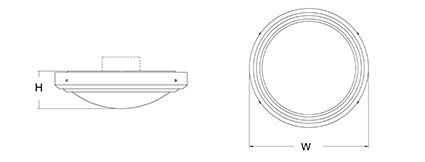

Print This PageDIMENSIONS
| W | H | BASE MODEL NO. |
| 14″ | 4″ | S9400-L14 |
| 14″ | 4″ | S9400-L21 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required (by others).
FEATURES
• Opal Matte Polycarbonate Dome
• Heavy Gauge Spun Metal Housing Trim
• UL Listed for Wet Locations
• Ceiling or Wall Mount
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
FINISHES
PT Powder Coated Finishes*
SD Shimmer Dimensional Metallic Finishes*
XT Trending Brushed Metal Finishes*
*(Specify Color Code from the list of Finishes [except interior only metallics] – ie. Gold Touch would be ‘GT’)
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
LIGHT OUTPUT
LXX = ~ 56 LPW Delivered Lumens (Example: L14= 14W x 56LPW = 784 Lumens)
