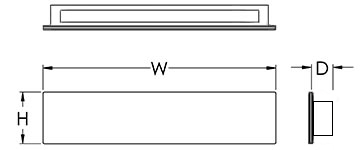

DIMENSIONS

W H D MC BASE MODEL NO.
28″ 6″ 3″ 14″ S9395-L16
38″ 6″ 3″ 19″ S9396-L24
50″ 6″ 3″ 25″ S9397-L32
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic Panels (2)
• Solid Aluminum Front
• ADA Compliant
• UL Listed for Wet Location
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish +  Option Code

S9395-L16 + 27K + PT + Option
S9396-L24 30K
S9397-L32 35K
40K
FINISHES
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes [except interior only metallics])
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup

LIGHT OUTPUT

LXX = ~ 43 LPW Delivered Lumens (Example: L16= 16 x 43 = 688 Lumens)

** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.
