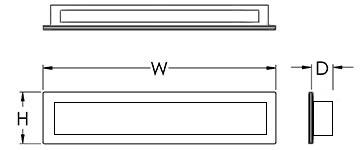

Print This PageDIMENSIONS
| W | H | D | MC | BASE MODEL NO. |
| 28″ | 6″ | 3″ | 14″ | S9390-L16 |
| 38″ | 6″ | 3″ | 19″ | S9391-L24 |
| 50″ | 6″ | 3″ | 25″ | S9392-L32 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Opal Matte Acrylic Panels (3)
• Solid Aluminum Front
• ADA Compliant
• UL Listed for Wet Location
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
| S9390-L16 | + | 27K | + | PT | + | Option |
| S9391-L24 | 30K | |||||
| S9392-L32 | 35K | |||||
| 40K |
FINISHES
| PT Powder Coated Finishes* | |
| *(Specify Color Code from the list of Powder Coating Finishes [except interior only metallics]) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
LCO Laser Cut Overlay (Consult Factory for Options)
LIGHT OUTPUT
LXX = ~ 72 LPW Delivered Lumens (Example: L16= 16 x 72 = 1,152 Lumens)
** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.
