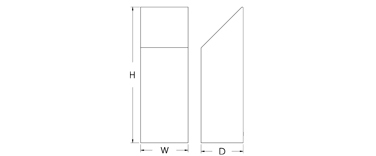

DIMENSIONS

W H H H BASE MODEL NO.
4 1/2″ 13″ 4″ 8 3/4″ S9372-L12
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required  (by others).

FEATURES

• Solid Aluminum Material
• Solid Top
• Clear Linear Spread Glass Lens
• UL Listed for Wet Location
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S9372-L12 + 27K + PT + Option
30K
35K
40K
FINISHES

PT Powder Coated Finishes*
**
*(Specify Color Code from the list of Powder Coating Finishes [except interior only metallics])

OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)

LIGHT OUTPUT

LXX = ~ 50 LPW Delivered Lumens (Example: L12= 12W x 50LPW = 600 Lumens)

** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.
