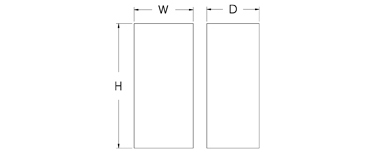

DIMENSIONS

W H D MC BASE MODEL NO.
4 1/2″ 9″ 4″ 4 3/4″ S9370-L12
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required  (by others).

FEATURES

• Solid Aluminum Material
• Solid Top
• Clear Linear Spread Glass Lens
• UL Listed for Wet Location
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S9370-L12 + 27K + PT + Option
30K SD
35K
40K
FINISHES

PT Powder Coated Finishes*
SD Shimmer Dimensional Metallic Finishes*

*(Specify Color Code from the list of Finishes [except interior only metallics] – ie. Gold Touch would be ‘GT’)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)

LIGHT OUTPUT

LXX = ~ 23.6 LPW Delivered Lumens (Example: L12= 12W x 23.6LPW = 283.2 Lumens)
