DIMENSIONS

W H D MC BASE MODEL NO.
8 1/2″ 20″ 4″ 10″ S9360-L24
8 1/2″ 24″ 4″ 12″ S9361-L16
8 1/2″ 30″ 4″ 15″ S9362-L32
8 1/2″ 37″ 4″ 18 1/2″ S9363-L34
8 1/2″ 49″ 4″ 24 1/2″ S9364-L48
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required  (by others).

FEATURES

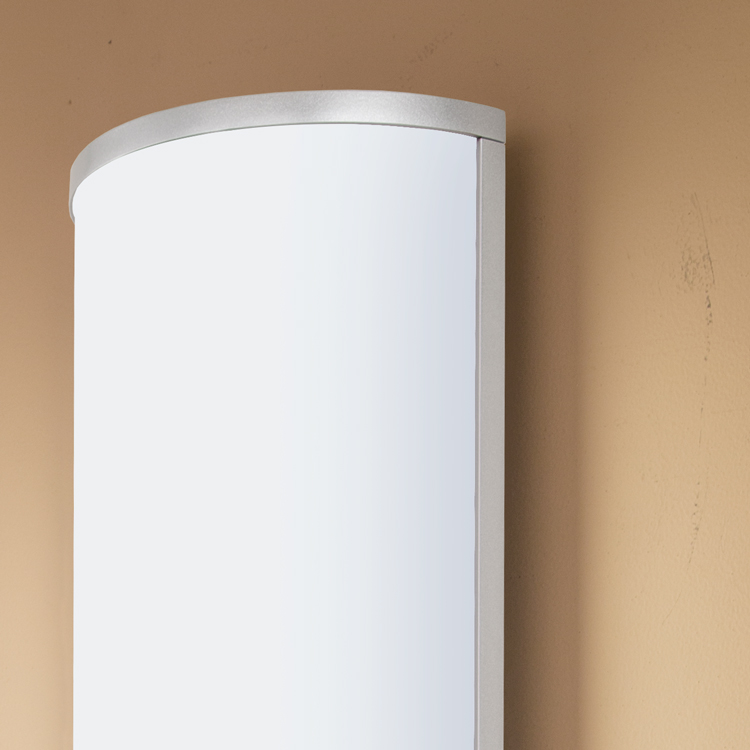

• Opal Acrylic
• Solid Aluminum End-Plates
• Solid Aluminum Bar Stock
• UL Listed for Wet Location
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S9360-L24 + 27K + PT + Option
S9361-L16 30K SD
S9362-L32 35K XT
S9363-L34 40K
S9364-L48
FINISHES

PT Powder Coated Finishes*
SD Shimmer Dimensional Metallic Finishes*
XT Trending Brushed Metal Finishes*

*(Specify Color Code from the list of Finishes [except interior only metallics] – ie. Gold Touch would be ‘GT’)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
HB Horizontal Bars
HB/PMD Horizontal Bars with Perforated Metal Diffuser
VB Vertical Bars
VB/PMD Vertical Bars with Perforated Metal Diffuse

LIGHT OUTPUT

LXX = ~ 77 LPW Delivered Lumens (Example: L24= 24W x 77LPW = 1,848 Lumens)
