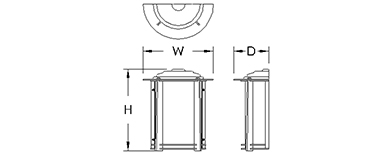

Print This PageDIMENSIONS
| W | H | D | MC | BASE MODEL NO. |
| 10 1/2″ | 12 1/4″ | 5 1/4″ | 6 1/2″ | S9310-L16 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required (by others).
FEATURES
• Opal Acrylic Lens
• Solid Aluminum Material
• UL Listed for Wet Location
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
| S9310-L16 | + | 27K | + | PT | + | Option |
| 30K | BA | |||||
| 35K | ||||||
| 40K |
FINISHES
| BA Brushed Aluminum | PT Powder Coated Finishes* ** |
| *(Specify Color Code from the list of Powder Coating Finishes [except interior only metallics]) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
LIGHT OUTPUT
LXX = ~ 81 LPW Delivered Lumens (Example: L16= 16W x 81LPW = 1,296 Lumens)
** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.
