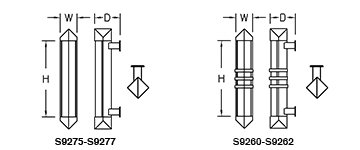

DIMENSIONS

W H D MC BASE MODEL NO.
8″ 26″ 12″ 8 1/2″ S9260-L24
8″ 36″ 12″ 8 1/2″ S9261-L34
8″ 50″ 12″ 8 1/2″ S9262-L48
8″ 26″ 12″ 8 1/2″ S9275-L24
8″ 36″ 12″ 8 1/2″ S9276-L34
8″ 50″ 12″ 8 1/2″ S9277-L48
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required  (by others).

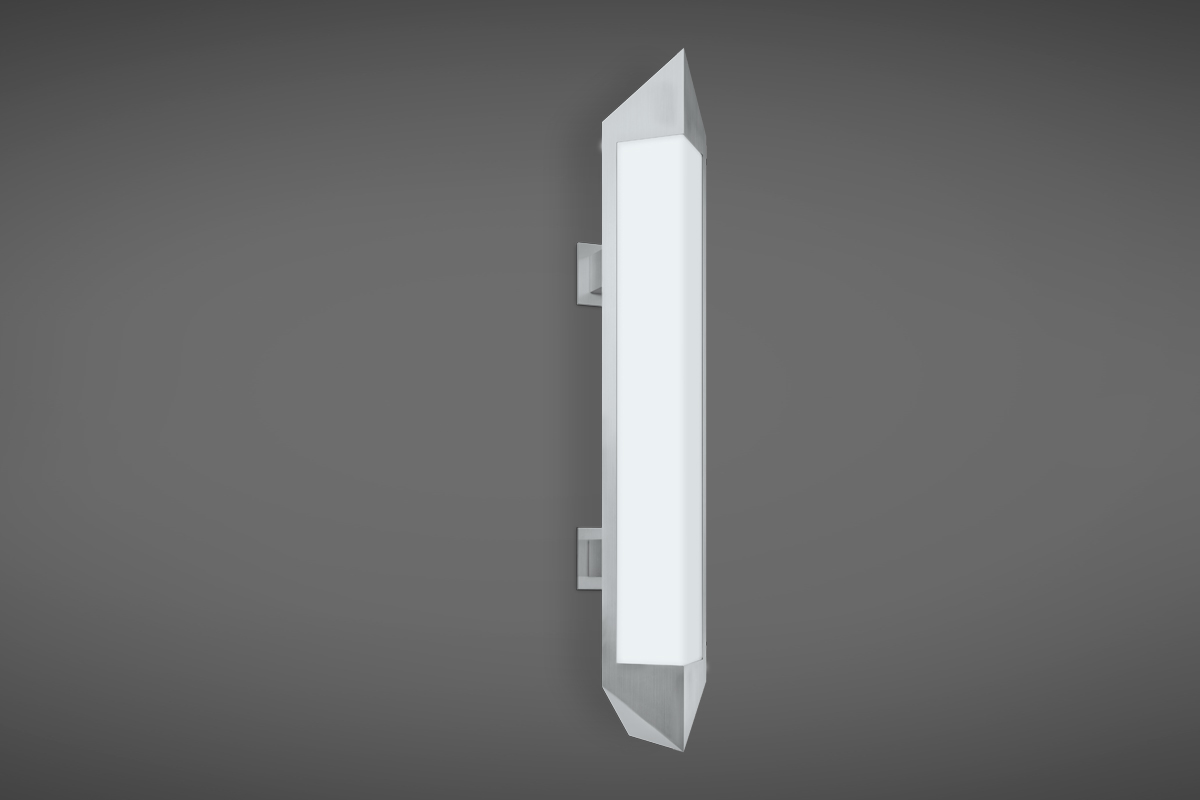

FEATURES

• Opal Acrylic Lens
• Solid Aluminum End-Caps
• Solid Aluminum Bar Stock Material
• Stainless Steel Fastener
• UL Listed for Wet Location
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish +  Option Code

S9260-L24 + 27K + PT + Option
S9261-L34 30K BA
S9262-L48 35K
S9275-L24
S9276-L34
S9277-L48
FINISHES
BA Brushed Aluminum PT Powder Coated Finishes*
**
*(Specify Color Code from the list of Powder Coating Finishes [except interior only metallics])
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)

LIGHT OUTPUT

LXX = ~ 63 LPW Delivered Lumens (Example: L24= 24W x 63LPW = 1,512 Lumens)

** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.
