Print This PageDIMENSIONS
| W | H | D | MC | BASE MODEL NO. |
| 8″ | 18″ | 6″ | 9″ | S9255-L12 |
| 8″ | 26″ | 6″ | 13″ | S9256-L24 |
| 8″ | 38″ | 6″ | 19″ | S9257-L36 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required (by others).
FEATURES

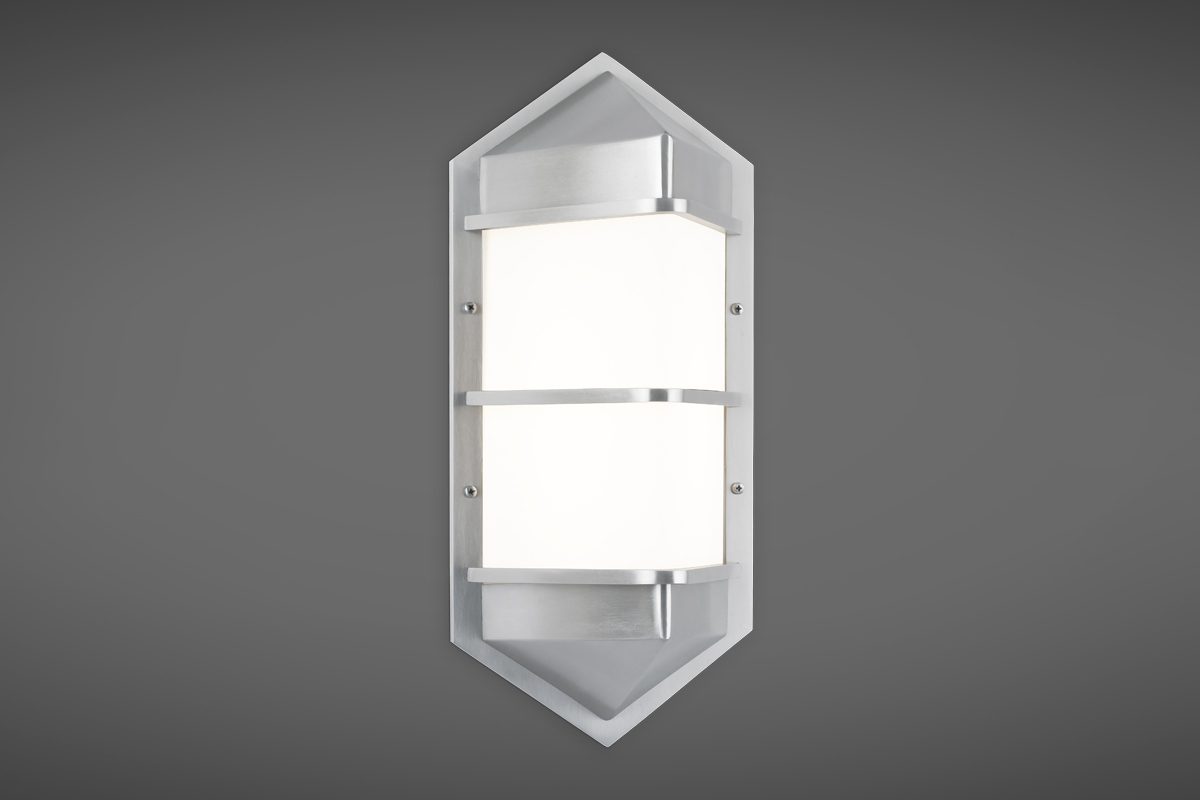

• Opal Acrylic Lens
• Solid Aluminum End-Caps
• Solid Aluminum Bar Stock Material
• Stainless Steel Fastener
• UL Listed for Wet Location
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
FINISHES
PT Powder Coated Finishes*
SD Shimmer Dimensional Metallic Finishes*
XT Trending Brushed Metal Finishes*
*(Specify Color Code from the list of Finishes [except interior only metallics] – ie. Gold Touch would be ‘GT’)
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
LIGHT OUTPUT
LXX = ~ 68 LPW Delivered Lumens (Example: L12= 12W x 68LPW = 816 Lumens)
