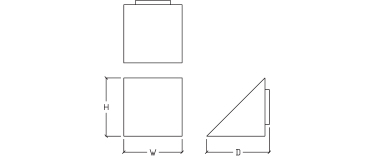

DIMENSIONS

W H D MC BASE MODEL NO.
10″ 10″ 10 3/4″ 5 7/8″ S9040-L12
10″ 10″ 10 3/4″ 5 7/8″ S9040-L24
12″ 12″ 13 3/4″ 6 5/8″ S9041-L18
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required  (by others).

FEATURES

• Tempered Glass Lens
• Downlight Suitable for Wet Location
• Uplight Suitable for Damp Location
• UL Listed for Wet Location
• Full Cut-off Distribution
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S9040-L12 + 27K + PT + Option
S9040-L24 30K AB
S9041-L18 35K AP
40K TC
FINISHES
AB Aged Brass
AP Aged Pewter		 TC Tahoe Copper
PT Powder Coated Finishes*
**
*(Specify Color Code from the list of Powder Coating Finishes [except interior only metallics])
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup

LIGHT OUTPUT

LXX = ~ 53.8 LPW Delivered Lumens (Example: L24= 24W x 53.8LPW = 1,291.2 Lumens)

** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.
