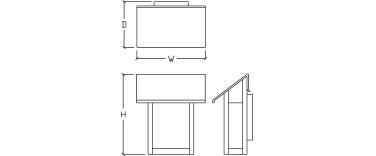

DIMENSIONS

W H D MC BASE MODEL NO.
10 1/2″ 11 1/2″ 5 1/4″  5 5/8″ S9030-L16
12″ 14″ 8″ 7″ S9031-L18
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided. Silicone Seal Required  (by others).

FEATURES

• Opal Acrylic Panels Standard
• UL Listed for Wet Location
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S9030-L16 + 27K + PT + Option
S9031-L18 30K AB
35K AP
40K TC
FINISHES
AB Aged Brass
AP Aged Pewter		 TC Tahoe Copper
PT Powder Coated Finishes*
**
*(Specify Color Code from the list of Powder Coating Finishes [except interior only metallics])
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
SG Seedy Glass
WOG Opal Glass

LIGHT OUTPUT

LXX = ~ 70 LPW Delivered Lumens (Example: L16 = 16W x 70LPW = 1,120 Lumens)

** Try our new Shimmer Metalic Paints, Formulated for Exterior Conditions.
