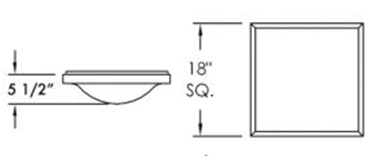

DIMENSIONS

W H D BASE MODEL NO.
18″ 5 1/2″ 18″ S7235-L24
24″ 5 1/2″ 24″ S7236-L60
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic Lens
• Softly Domed Square Lens
• Solid Aluminum Material
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S7235-L24 + 27K + PT + Option
S7236-L60 30K CC
35K BA
40K NT
GT
CT
ZT
TT
PWT
BST
FINISHES
BA Brushed Aluminum
PC Polished Chrome
NT Nickel Touch
GT Gold Touch
CT Copper Touch
ZT Bronze Touch		 TT Toffee Touch
PWT Pewter Touch
BST Blackened Steel Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)

LIGHT OUTPUT

LXX = ~ 61.5 LPW Delivered Lumens (Example: L24= 24W x 61.5LPW = 1,476 Lumens)
