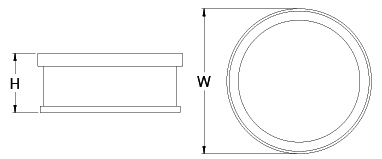

DIMENSIONS

W H BASE MODEL NO.
16″ 7″ S7215-L12
22″ 8″ S7216-L24
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• Heavy Gauge Spun Metal Housing Trim
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S7215-L12 + 27K + PT + Option
S7216-L24 30K BB
35K BC
40K BN
CC
FINISHES
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel		 CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)

Light Output

LXX = ~ 63 LPW Delivered Lumens (Example: L12= 12W x 63LPW = 756 Lumens)
