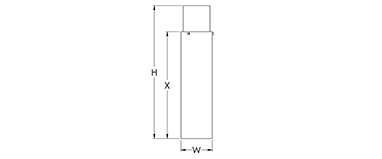

Print This PageDIMENSIONS
| W | H | X | BASE MODEL NO. |
| 6″ | 20 1/2″ | 15 1/2″ | S7205-L20M |
| 6″ | 25 1/2″ | 20 1/2″ | S7206-L24M |
| 6″ | 30 1/2″ | 25 1/2″ | S7207-L32M |
SPECIFICATIONS
Driver: 0-10V dimming to 10%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Opal Matte Acrylic
• Heavy Gauge Spun Canopy
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
| S7205-L20M | + | 27K | + | PT | GT | + | Option |
| S7206-L24M | 30K | BA | NT | ||||
| S7207-L32M | 35K | BB | ZT | ||||
| 40K | BC | TT | |||||
| BN | PWT | ||||||
| CT | BST |
FINISHES
| BA Brushed Aluminum BB Brushed Brass BC Brushed Chrome BN Brushed Nickel CT Copper Touch GT Gold Touch |
NT Nickel Touch ZT Bronze Touch TT Toffee Touch PWT Pewter Touch BST Blackened Steel Touch PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2, Antique; FA3 Grey; FA4 Taupe; FA5 Honey, FA6 Tuscan]
LIGHT OUTPUT
LXX = ~ 75 LPW Delivered Lumens (Example: L20= 20W x 75LPW = 1,500 Lumens)
