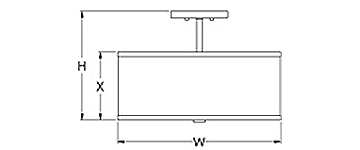

Print This PageDIMENSIONS
| W | H | X | BASE MODEL NO. |
| 18″ | 12″ | 7 1/2″ | S7200-L36 |
| 24″ | 14 1/2″ | 10″ | S7201-L60 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Opal Matte Acrylic Bottom Diffuser
• Fabric shades on heavy Translucent White styrene
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish Code + Fabric Code + Option Code
| S7200-L36 | + | 27K | + | PT | + |
|
+ | Option | ||
| S7201-L60 | 30K | BA |
|
|||||||
| 35K | BB |
|
||||||||
| 40K | BC |
|
||||||||
| BN |
|
|||||||||
|
||||||||||
|
||||||||||
|
FINISHES
| BA Brushed Aluminum BB Brushed Brass BC Brushed Chrome |
BN Brushed Nickel PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
FABRIC
| LF01 Huggy White | LF02 Olive | LF03 Sage |
| LF04 Orchre | LF05 Praline | LF06 Linen |
| LF07 Canvas | LF08 Butter | LF09 Breeze |
| LF10 Ebony | LF11 Parchment | LF12 Flan |
| LF13 Natural HF | LF14 Merlot | |
| CLF Custom Linen Fabric Shade (Consult Factory) | ||
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
LIGHT OUTPUT
LXX = ~ 63 LPW Delivered Lumens (Example: L36= 36W x 63LPW = 2,268 Lumens – Varies with Shade Color)
