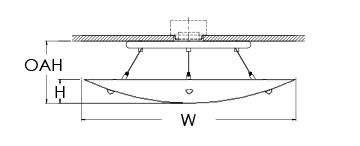

DIMENSIONS

W OAH H BASE MODEL NO.
24″ 7″ 2 3/4″ S7167-L24H
SPECIFICATIONS

Driver: 0-10V Dimming Driver, 120/277
Mounting: J-Box must fit the recessed driver. We recommend a full size 4X4 J-box.

FEATURES

• Opal Matte Acrylic
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S7167-L24H + 27K + PT BN + Option
30K BA PB
35K BB PC
40K BC PN
FINISHES
BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel		 PB Polished Brass
PC Polished Chrome
PN Polished Nickel
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2, Antique; FA3 Grey; FA4 Taupe; FA5 Honey, FA6 Tuscan]

LIGHT OUTPUT

LXX = ~ 95 LPW Delivered Lumens (Example: L24H= 24W x 95LPW = 2,280 Lumens)
