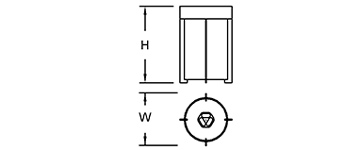

DIMENSIONS

W H BASE MODEL NO.
6 1/4″ 9 1/8″ S7136-L18
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish +  Option Code

S7136-L18 + 27K + PT BN + Option
30K BA PB
35K BB PC
40K BC PN
CT NT
GT ZT
TT PWT
BST
FINISHES
BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel
PB Polished Brass
PC Polished Chrome
PN Polished Nickel
CT Copper Touch		 GT Gold Touch
NT Nickel Touch
ZT Bronze Touch
TT Toffee Touch
PWT Pewter Touch
BST Blackened Steel Touch
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2, Antique; FA3 Grey; FA4 Taupe; FA5 Honey, FA6 Tuscan]
WOG Opal Glass

LIGHT OUTPUT

LXX = ~ 69 LPW Delivered Lumens (Example: L18= 18W x 69LPW = 1,242 Lumens)
