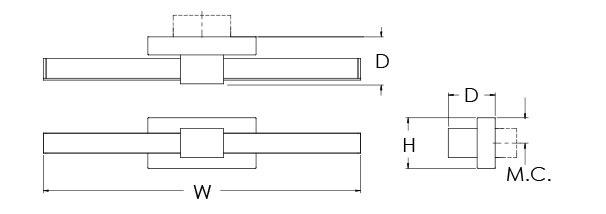

DIMENSIONS

W MC H D BASE MODEL NO.
22″ 1 3/8″ 3 3/8″ 3 3/4″ S3A80-L16
34″ 1 3/8″ 3 3/8″ 3 3/4″ S3A81-L24
46″ 1 3/8″ 3 3/8″ 3 3/4″ S3A82-L32
SPECIFICATIONS

Driver: 0-10V Dimming to 1%, 120/277
Mounting: Mounts to 2″ x 4″ Junction Boxes (by others) With Hardware Provided.

FEATURES

• Integral Driver
• ADA Compliant
• Horizontal or Vertical Mounting
• UL Listed for Damp Location
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code

S3A80‑L16 + 27K + PT ZT
S3A81‑L24 30K BA TT
S3A82‑L32 35K GT PWT
40K CT BST
NT
FINISHES
BA Brushed Aluminum
NT Nickel Touch
GT Gold Touch
ZT Bronze Touch
CT Copper Touch		 TT Toffee Touch
PWT Pewter Touch
BST Blackened Steel Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup

LIGHT OUTPUT

LXX = ~ 92 LPW Delivered Lumens (Example: L16= 16W x 92LPW = 1,472 Lumens)
