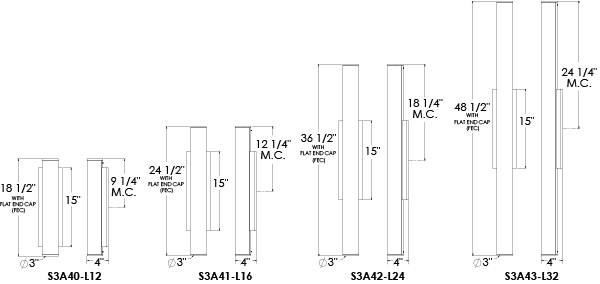

DIMENSIONS

W H D MC BASE MODEL NO.
4.5″ 18 1/2″ 4″ 9 1/4″ S3A40-L12
4.5″ 24 1/2″ 4″ 12 1/4″ S3A41-L16
4.5″ 36 1/2″ 4″ 18 1/4″ S3A42-L24
4.5″ 48 1/2″ 4″ 24 1/4″ S3A43-L32
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Extruded Opal Lens
• Aluminum Body Parts
• ADA Compliant
• Listed for damp location
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + End Cap +  Option Code

S3A40-L12 + 27K + PT CT + FEC + Option
S3A41-L16 30K BA TA CEC
S3A42-L24 35K GT PWT DEC
S3A43-L32 40K NT BST SEC
ZT VEC
FINISHES
BA Brushed Aluminum
NT Nickel Touch
GT Gold Touch
CT Copper Touch
ZT Bronze Touch		 TT Toffee Touch
PWT Pewter Touch
BST Blackened Steel Touch
PT Powder Coated Finishes

(Specify Color Code from the list of Powder Coating Finishes)

END CAP OPTIONS


CEC, VEC add 1/2″ to length, SEC adds 2″ to length, DEC adds 3″ to length

OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup

LIGHT OUTPUT

LXX = ~ 91.4 LPW Delivered Lumens (Example: L16= 16W x 91.4LPW = 1,462.4 Lumens)
