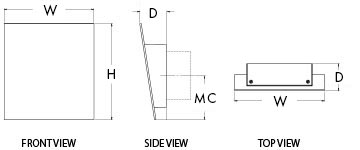

DIMENSIONS

W H D MC BASE MODEL NO.
7 1/2″ 8″ 2 1/2″ 3 5/8″ S3A20-L09
11 1/2″ 12″ 2 1/2″ 5 5/8″ S3A21-L12
11 1/2″ 12″ 2 1/2″ 5 5/8″ S3A21-L20
11 1/2″ 12″ 3 3/4″ 5 5/8″ S3A22-L30
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic Bottom and Top Lens
• Solid Aluminum Material
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish +  Option Code

S3A20-L09 + 27K + PT + Option
S3A21-L12 30K XT
S3A21-L20 35K CC
S3A22-L30 40K
FINISHES

PT Powder Coated Finishes*
XT Trending Brushed Metal Finishes*
CC Custom Painted Finish

*(Specify Color Code from the list of Finishes – ie. Gold Touch would be ‘GT’)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup

LIGHT OUTPUT

LXX = ~ 74 LPW Delivered Lumens (Example: L20 = 20W x 74LPW = 1,480 Lumens)
