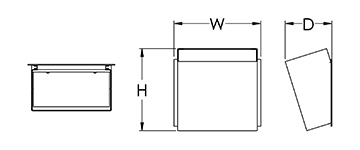

DIMENSIONS

W H D MC BASE MODEL NO.
12″ 11 3/8″ 6 1/2″ 6″ S3985-L14
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic Bottom and Top Lens
• Solid Aluminum or Brass Material
• Stainless Steel Screws
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3985-L14 + 27K + PT + Option
30K BA
35K BN
40K CC
FINISHES
BA Brushed Aluminum
BN Brushed Nickel		 CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup

LIGHT OUTPUT

LXX = ~ 88 LPW Delivered Lumens (Example: L14= 14W x 88LPW = 1,232 Lumens)
