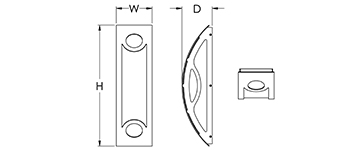

Print This PageDIMENSIONS
| W | H | D | MC | BASE MODEL NO. |
| 6 1/2″ | 22″ | 5 1/2″ | 11″ | S3890-L16 |
| 8 1/2″ | 37″ | 7 7/8″ | 18 1/2″ | S3891-L24 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Opal Matte Acrylic
• Solid Aluminum Material
• Stainless Steel Fastener
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
| S3890-L16 | + | 27K | + | PT | + | Option |
| S3891-L24 | 30K | BA | ||||
| 35K | BN | |||||
| 40K |
FINISHES
| BA Brushed Aluminum BN Brushed Nickel |
PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]
LIGHT OUTPUT
LXX = ~ 69 LPW Delivered Lumens (Example: L16= 16W x 69LPW = 1,104 Lumens)
