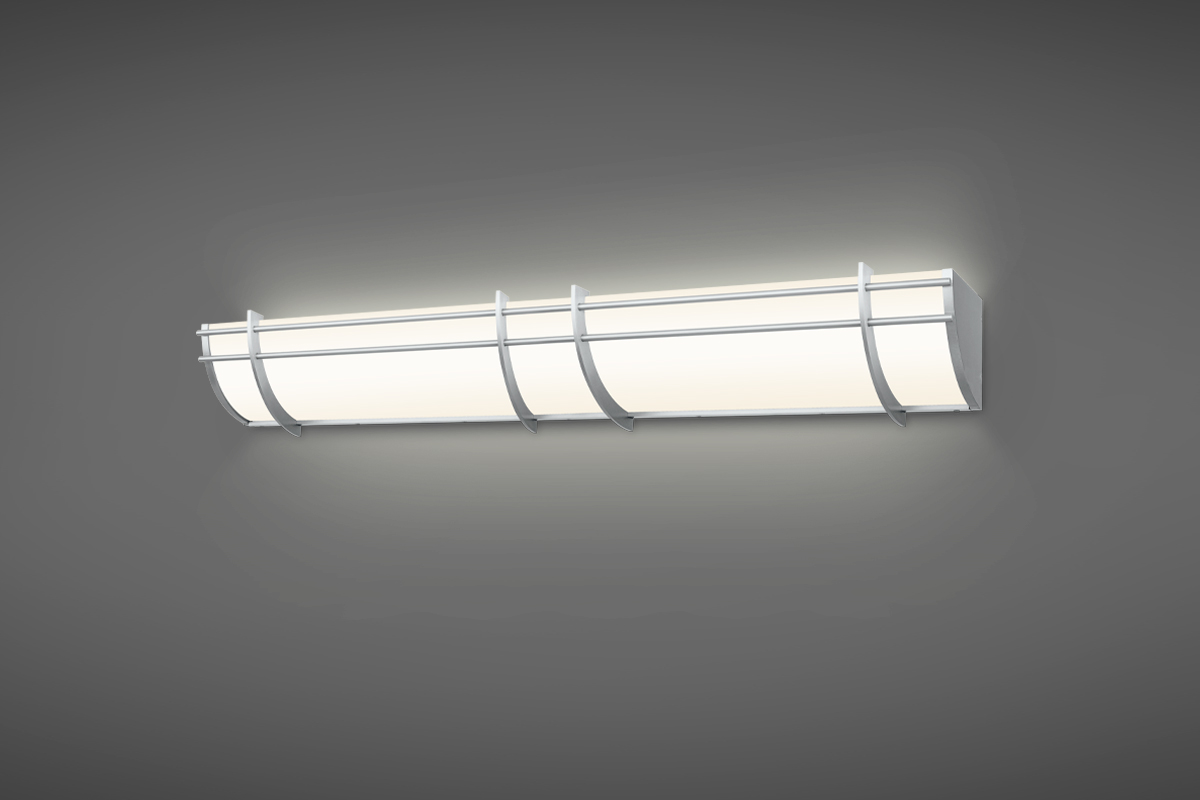

DIMENSIONS

W H D MC BASE MODEL NO.
24 3/4″ 7″ 7″ 2 3/4″ S3840-L16
35 3/4″ 7″ 7″ 2 3/4″ S3841-L24
47 3/4″ 7″ 7″ 2 3/4″ S3842-L32
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

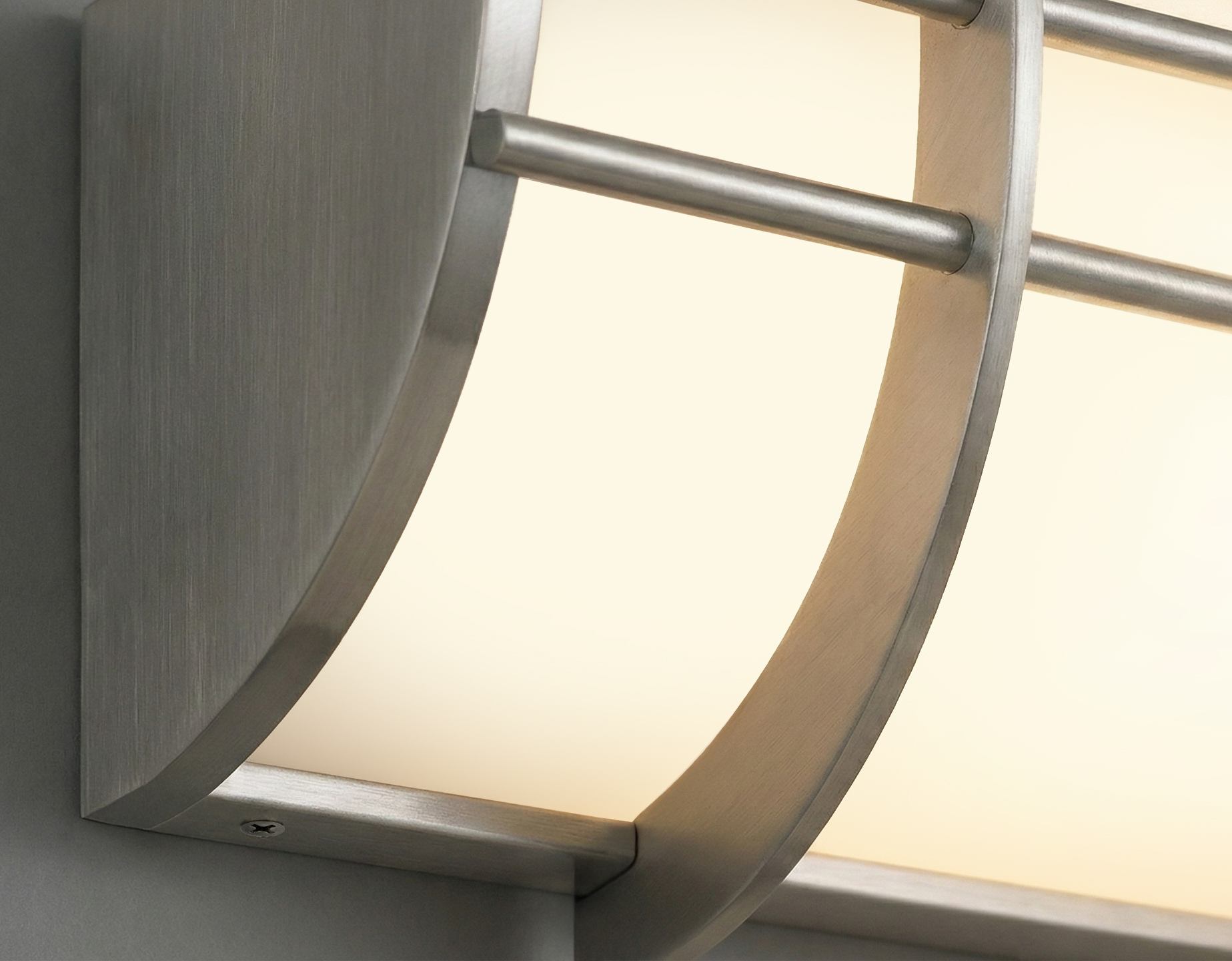

FEATURES

• Opal Matte Acrylic
• 1/4″ Thick Solid Metal Accent Fins
• Solid Metal Bar Trim
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3840-L16 + 27K + PT + Option
S3841-L24 30K BA
S3842-L32 35K BB
40K BC
BN
FINISHES
BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome		 BN Brushed Nickel
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]

LIGHT OUTPUT

LXX = ~ 81 LPW Delivered Lumens (Example: L16= 16W x 81LPW = 1,296 Lumens)
