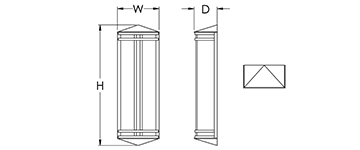

DIMENSIONS

W H D MC BASE MODEL NO.
7 1/4″ 19″ 4″ 9 1/2″ S3830-L12
7 1/4″ 24 7/8″ 4″ 12 1/2″ S3831-L16
7 1/4″ 36 5/8″ 4″ 18 3/8″ S3832-L24
7 1/4″ 48 3/8″ 4″ 24 1/4″ S3833-L32
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• Solid Aluminum Bar Stock Material
• Solid Aluminum End-Caps
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3830-L12 + 27K + PT BN + Option
S3831-L16 30K BA PB
S3832-L24 35K BB PC
S3833-L32 40K BC PN
FINISHES
BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel		 PB Polished Brass
PC Polished Chrome
PN Polished Nickel
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]

LIGHT OUTPUT

LXX = ~ 75 LPW Delivered Lumens (Example: L12= 12W x 75LPW = 900 Lumens)
