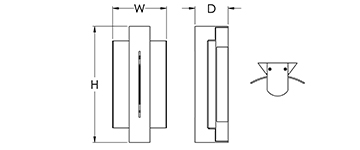

DIMENSIONS

W H D MC BASE MODEL NO.
6 1/2″ 14″ 4″ 7″ S3795-L16M
6 1/2″ 23″ 4″ 11 1/2″ S3796-L16M
6 1/2″ 35″ 4″ 17-1/2″ S3797-L32M
6 1/2″ 48″ 4″ 24″ S3798-L34M
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish +  Option Code

S3795-L16M + 27K + PT + Option
S3796-L16M 30K BA
S3797-L32M 35K
S3798-L34M 40K
FINISHES
BA Brushed Aluminum PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]

LIGHT OUTPUT

LXX = ~ 63 LPW Delivered Lumens (Example: L16M= 16W x 63LPW = 1,008 Lumens)
