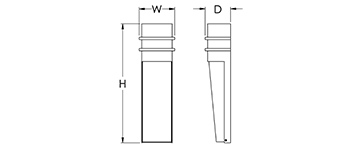

DIMENSIONS

W H D MC BASE MODEL NO.
5 1/2″ 18 3/4″ 4″ 10″ S3750-L18
5 1/2″ 18 3/4″ 4″ 10″ S3750-L22-04U
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• Fixture contains an Integral Step Down Transformer (Specify Voltage)
• Optional Uplight (L22-04U)
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish +  Option Code

S3750-L18 + 27K + PT BN + Option
S3750-L22-04U 30K BA PB
35K BB PC
40K BC PN
FINISHES
BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel		 PB Polished Brass
PC Polished Chrome
PN Polished Nickel
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]

LIGHT OUTPUT

LXX = ~ 72 LPW Delivered Lumens (Example: L18= 18W x 72LPW = 1,296 Lumens)
