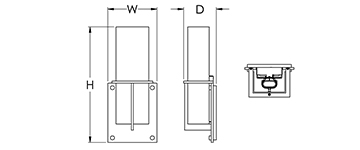

DIMENSIONS

W H D MC BASE MODEL NO.
6″ 14 1/8″ 4″ 10 5/8″ S3705-L16
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish +  Option Code

S3705-L16 + 27K + PT BN + Option
30K BA PB
35K BB PC
40K BC PN
FINISHES
BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel		 PB Polished Brass
PC Polished Chrome
PN Polished Nickel
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
CWA Cherry Wood Acrylic
LAC Linen Acrylic
GU24 GU-24 Lamping

LIGHT OUTPUT

LXX = ~ 81 LPW Delivered Lumens (Example: L16= 16W x 81LPW = 1,296 Lumens)
