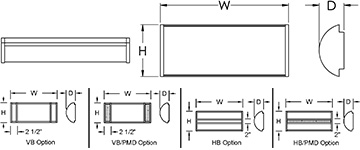

W | H | D | MC | BASE MODEL NO. |
20″ | 8 1/2″ | 4″ | 10″ | S3680-L16 |
24″ | 8 1/2″ | 4″ | 12″ | S3681-L16 |
30″ | 8 1/2″ | 4″ | 15″ | S3682-L24 |
37″ | 8 1/2″ | 4″ | 18 1/2″ | S3683-L27 |
49″ | 8 1/2″ | 4″ | 24 1/2″ | S3684-L32 |
Driver: 0-10V dimming to 1%, 120/277

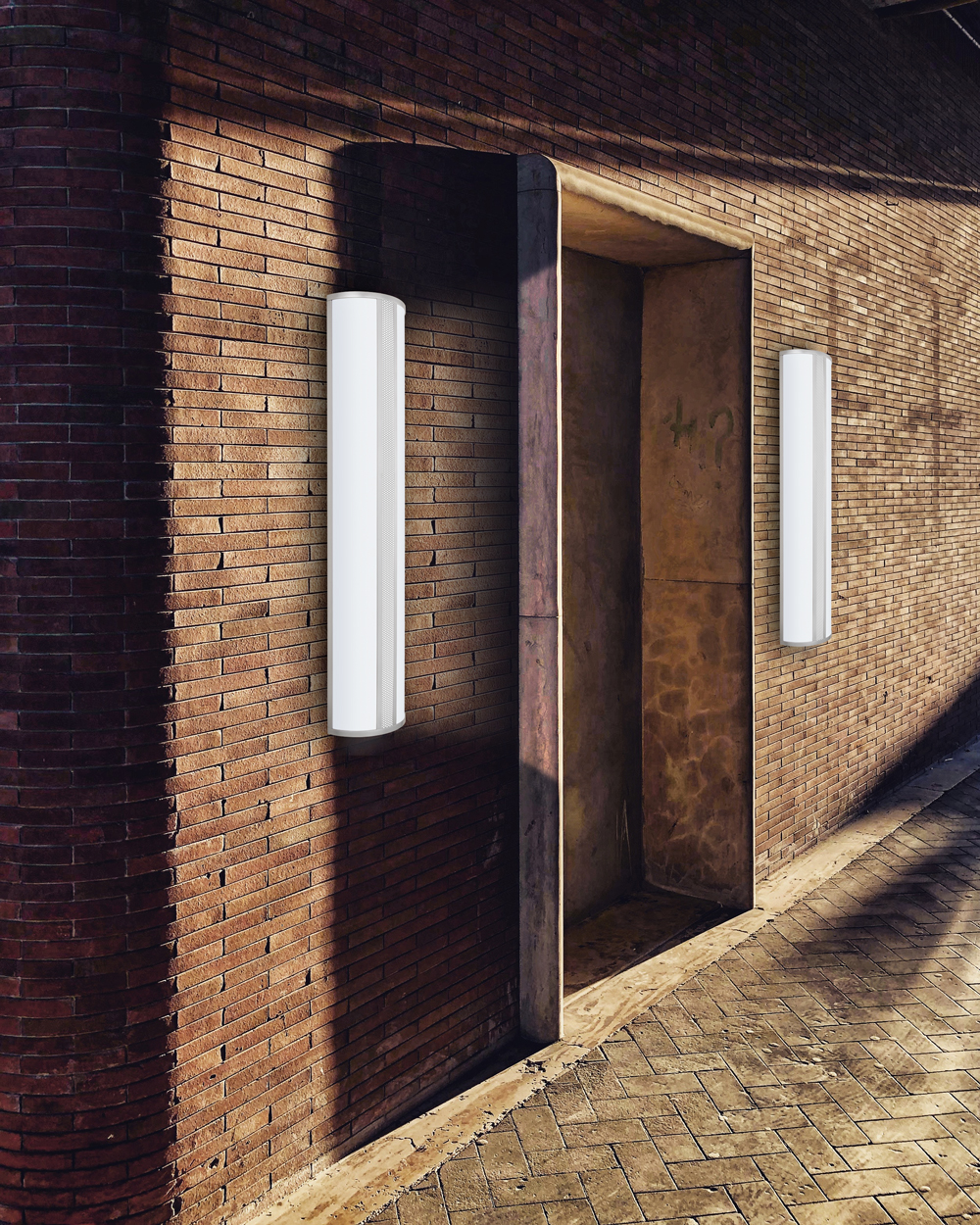

Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
• Opal Matte Acrylic
• Solid Aluminum End Plates
• Solid Aluminum Bar Stock
• ADA Compliant
• LED 0-10V Dimming Driver
Model No. + Lamp Code + CCT + Finish + Option Code
S3680-L16 | + | 27K | + | PT | + | Option |
S3681-L16 | 30K | BA | ||||
S3682-L24 | 35K | BC | ||||
S3683-L27 | 40K | BN | ||||
S3684-L32 |
BA Brushed Aluminum BC Brushed Chrome |
BN Brushed Nickel PT Powder Coated Finishes* |
*(Specify Color Code from the list of Powder Coating Finishes) |
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
HB Horizontal Bars
HB/PMD Horizontal Bars w/ Perforated Metal Diffuser
VB Vertical Bars
VB/PMD Vertical Bars w/ Perforated Metal Diffuser
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]
LXX = ~ 76.6 LPW Delivered Lumens (Example: L16= 16W x 76.6LPW = 1,225.6 Lumens)
