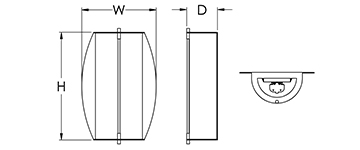

DIMENSIONS

W H D MC BASE MODEL NO.
9 1/2″ 13″ 4″ 6 1/2″ S3610-L16
9 1/2″ 18″ 4″ 9″ S3611-L18
9 1/2″ 24″ 4″ 12″ S3612-L24
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3610-L16 + 27K + PT PB + Option
S3611-L18 30K BA PC
S3612-L24 35K BB PN
40K BC
BN
FINISHES
BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrome
BN Brushed Nickel		 PB Polished Brass
PC Polished Chrome
PN Polished Nickel
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
BTL Bottom Lens
TPL Top Lens
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]

LIGHT OUTPUT

LXX = ~ 75 LPW Delivered Lumens (Example: L16= 16W x 75LPW = 1,200 Lumens)
