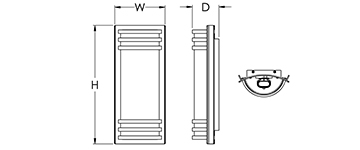

DIMENSIONS

W H D MC BASE MODEL NO.
7″ 16 1/2″ 4″ 8 1/4″ S3575-L16
10 7/8″ 16 1/2″ 4″ 8 1/4″ S3578-L16
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3575-L16 + 27K + PT + Option
S3578-L16 30K BA
35K CT
40K GT
ZT
NT
FINISHES

BA Brushed Aluminum
CT Copper Touch
GT Gold Touch
NT Nickel Touch
ZT Bronze Touch
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
BTL Bottom Lens
TPL Top Lens
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]

LIGHT OUTPUT

LXX = ~ 63 LPW Delivered Lumens (Example: L16= 16W x 63LPW = 1,008 Lumens)
