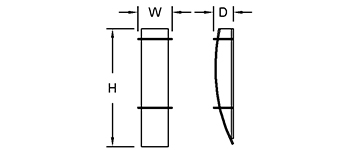

Print This PageDIMENSIONS
| W | H | D | MC | BASE MODEL NO. |
| 7″ | 24″ | 4″ | 9 1/2″ | S3505-L16 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Opal Matte Acrylic
• ADA Compliant
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
FINISHES
PT Powder Coated Finishes*
XT Trending Brushed Metal Finishes*
PF Pure Metal Finishes*
*(Specify Color Code from the list of Finishes – ie. Gold Touch would be ‘GT’)
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
TPL Top Lens
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]
LIGHT OUTPUT
LXX = ~ 75 LPW Delivered Lumens (Example: L16= 16W x 75LPW = 1,200 Lumens)
