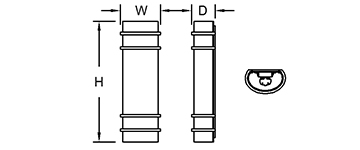

Print This PageDIMENSIONS
| W | H | D | MC | BASE MODEL NO. |
| 6 3/4″ | 20″ | 4″ | 10″ | S3490-L12 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Opal Matte Acrylic
• ADA Compliant
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + OA + Option Code
| S3490-L12 | + | 27K | + | PT | PB | + | Option |
| 30K | BA | PC | |||||
| 35K | BB | PN | |||||
| 40K | BC | ||||||
| BN |
FINISHES
| BA Brushed Aluminum BB Brushed Brass BC Brushed Chrome BN Brushed Nickel |
PB Polished Brass PC Polished Chrome PN Polished Nickel PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
BTL Bottom Lens
TPL Top Lens
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]
LIGHT OUTPUT
LXX = ~ 75 LPW Delivered Lumens (Example: L12= 12W x 75LPW = 900 Lumens)
