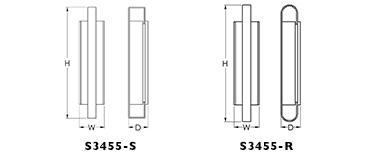

DIMENSIONS

W H D MC BASE MODEL NO.
4 1/2″ 20″ 3 9/16″ 10″ S3455-S-L16

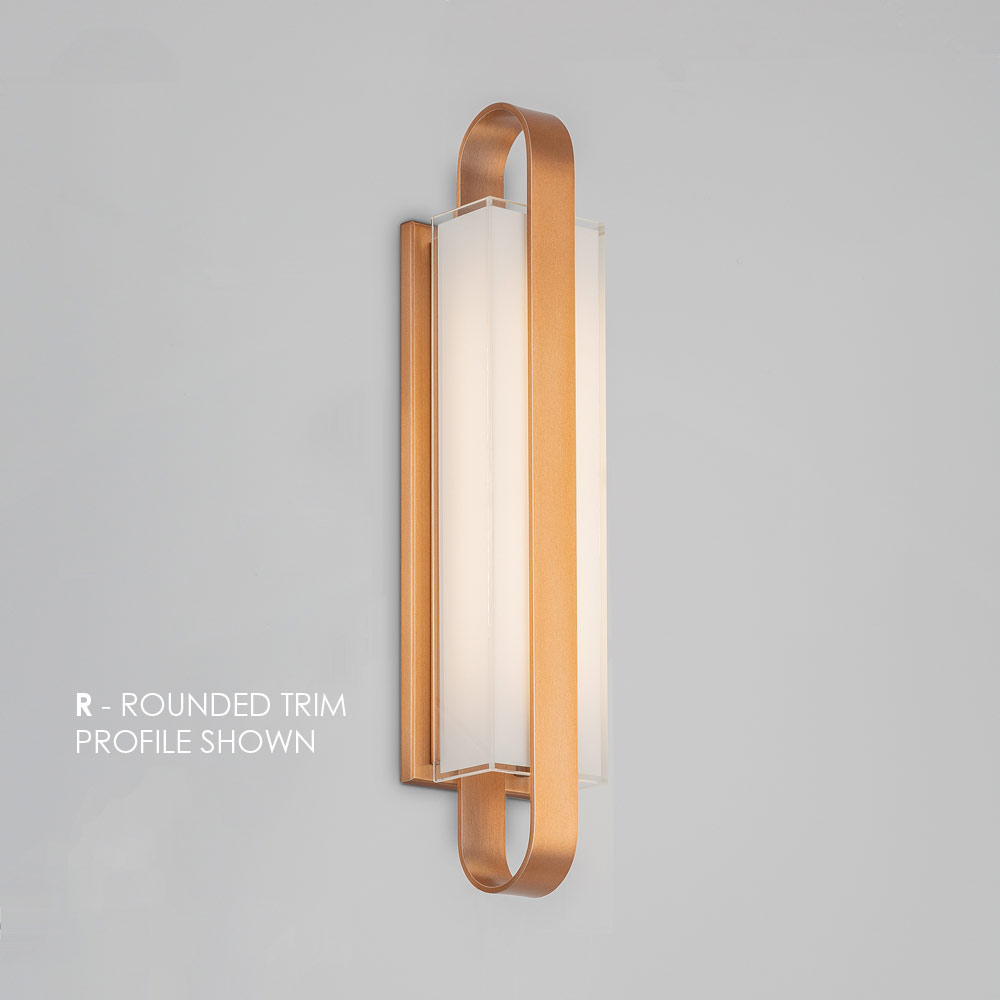

4 1/2″ 21″ 3 9/16″ 10 1/2″ S3455-R-L16
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Clear Edged Glass with Interior Frost
• Metal Trim
• For Vertical Mounting
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. – Lamp Code + CCT + Finish +  Option Code

S3455-S-L16 + 27K + PT + Option
S3455-R-L16 30K CC
35K CT
40K BA
GT
NT
FINISHES
BA Brushed Aluminum
PC Polished Chrome
NT Nickel Touch
GT Gold Touch		 CT Copper Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup

LIGHT OUTPUT

LXX = ~ 65 LPW Delivered Lumens (Example: L16= 16W x 65LPW = 1,040 Lumens)
