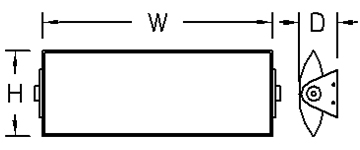

DIMENSIONS

W H D MC BASE MODEL NO.
16″ 6″ 4″ 3″ S3295-L12
21″ 6″ 4″ 3″ S3296-L16
25 1/4″ 6″ 4″ 3″ S3297-L24
38″ 6″ 4″ 3″ S3298-L32
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic Lens
• Polished Chrome End-Plates Standard Custom Metal Finishes Available – (Consult Factory)
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3295-L12 + 27K + PT + Option
S3296-L16 30K
S3297-L24 35K
S3298-L32 40K
FINISHES

PT Powder Coated Finishes*

*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
PMD Perforated Metal Diffuser

LIGHT OUTPUT

LXX = ~ 69 LPW Delivered Lumens (Example: L12= 12W x 69LPW = 828 Lumens)
