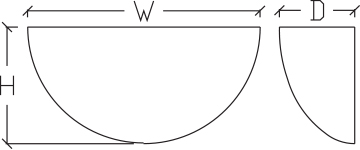

Print This PageDIMENSIONS
| W | H | D | MC | BASE MODEL NO. |
| 12″ | 6″ | 4″ | 3″ | S3240-L09 |
| 14″ | 7″ | 4″ | 3 1/2″ | S3241-L09 |
| 18″ | 9″ | 4″ | 4 1/2″ | S3242-L14 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES

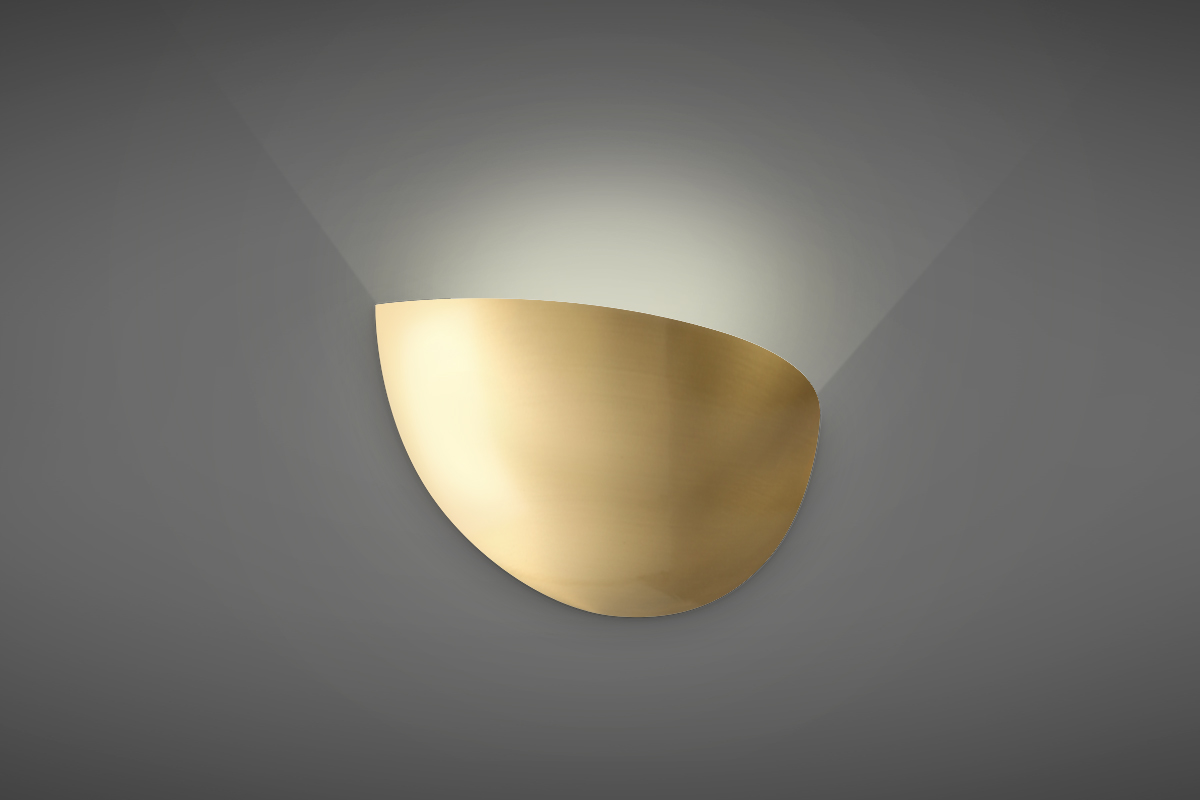

• All Metal Unit
• ADA Compliant
• Acrylic Top Lens
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
| S3240-L09 | + | 27K | + | PT | + | Option |
| S3241-L09 | 30K | PB | ||||
| S3242-L14 | 35K | PC | ||||
| 40K |
FINISHES
| PB Polished Brass PC Polished Chrome |
PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
LIGHT OUTPUT
LXX = ~ 81 LPW Delivered Lumens (Example: L09= 9W x 81LPW = 729 Lumens)
