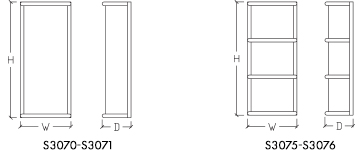

DIMENSIONS

W H D MC BASE MODEL NO.

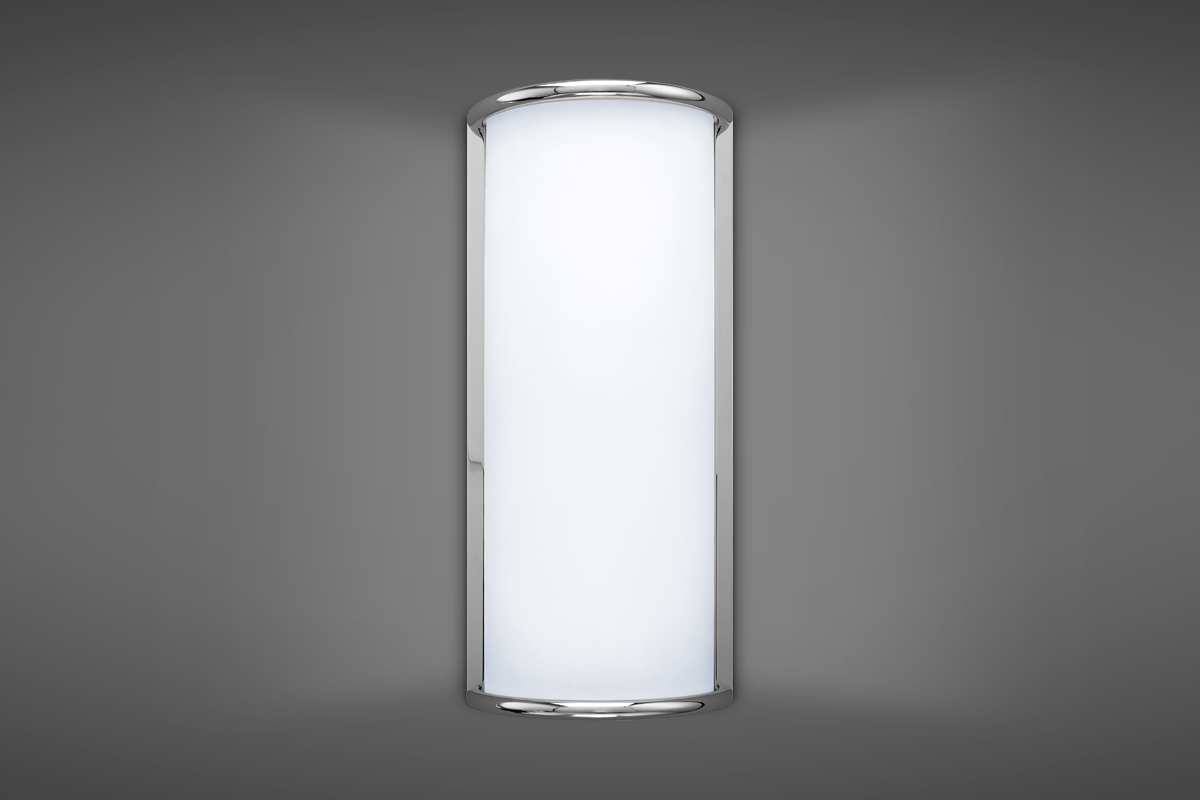

7″ 16″ 4″ 8″ S3070-L14
9″ 20″ 5 1/2″ 10″ S3071-L24

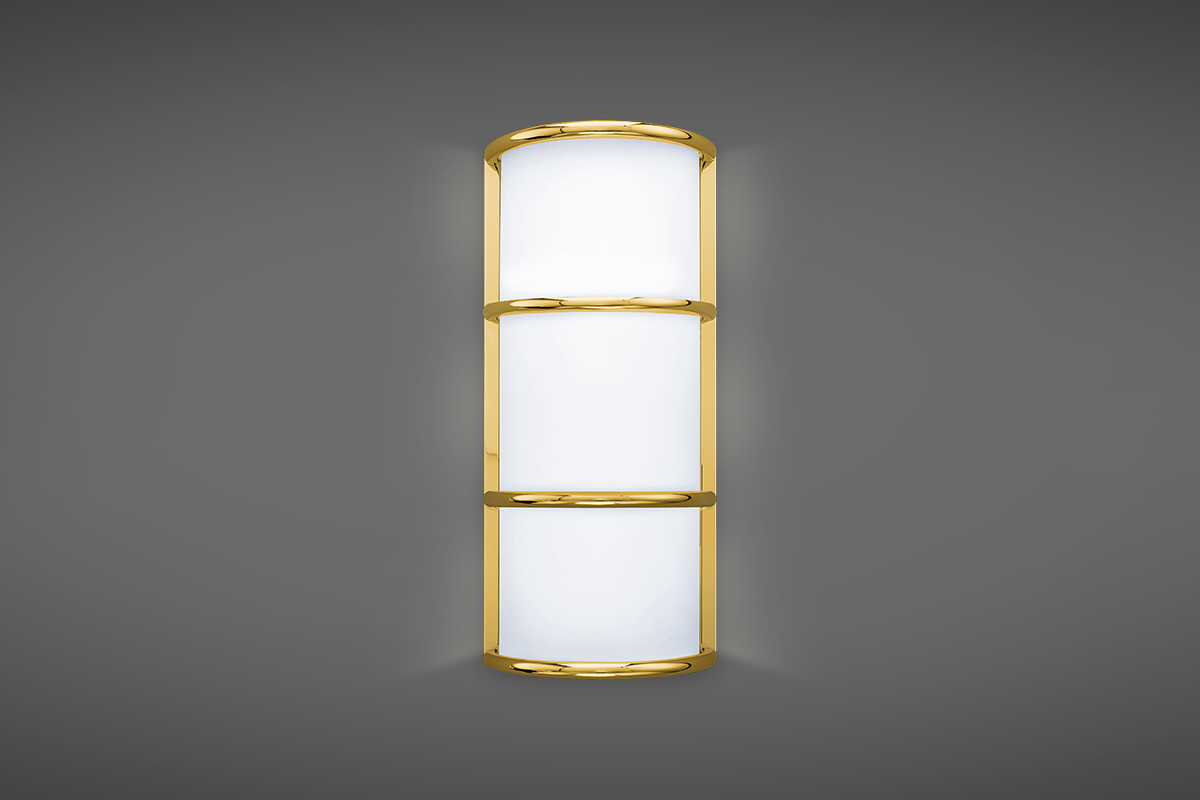

7″ 16″ 4″ 8″ S3075-L14
9″ 20″ 5″ 8″ S3076-L24
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic
• 1/2″ Thick Solid Bar Stock
• ADA Compliant (Only S3070 & S3075)
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S3070-L14 + 27K + PT + Option
S3071-L24 30K BA
S3075-L14 35K BB
S3076-L24 40K BC
PB
PC
FINISHES
BA Brushed Aluminum
BB Brushed Brass
BC Brushed Chrom		 PB Polished Brass
PC Polished Chrome
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
BTL Bottom Lens
TPL Top Lens
WOG Opal Glass

LIGHT OUTPUT

LXX = ~ 69 LPW Delivered Lumens (Example: L14= 14W x 69LPW = 966 Lumens)
