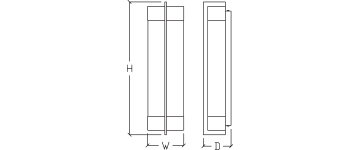

Print This PageDIMENSIONS
| W | H | D | MC | BASE MODEL NO. |
| 5 1/2″ | 14″ | 4″ | 7″ | S3020-L14 |
| 5 1/2″ | 19″ | 4″ | 9 1/2″ | S3021-L18 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Opal Matte Acrylic Diffuser
• ADA Compliant
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
| S3020-L14 | + | 27K | + | PT | + | Option |
| S3021-L18 | 30K | BC | ||||
| 35K | PB | |||||
| 40K | PC |
FINISHES
| BC Brushed Chrome PB Polished Brass |
PC Polished Chrome PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
LIGHT OUTPUT
LXX = ~ 81 LPW Delivered Lumens (Example: L14= 14W x 81LPW = 1,134 Lumens)
