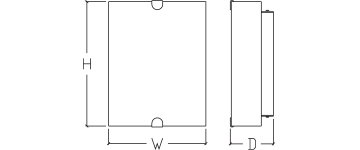

DIMENSIONS

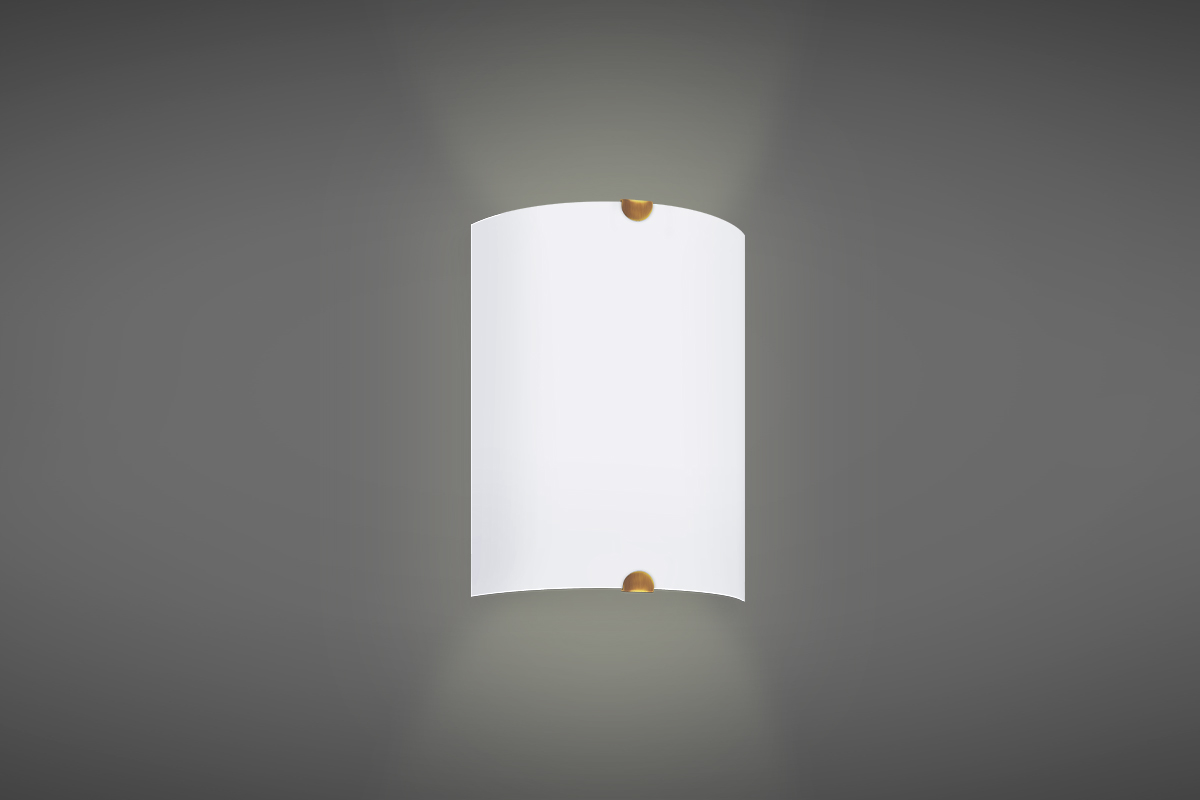

W H D MC BASE MODEL NO.
9″ 11 1/2″ 4″ 5 3/4″ S3004-L14
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic Diffuser
• ADA Compliant
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish +  Option Code

S3004-L14 + 27K + PT PB + Option
30K AP PC
35K BA PN
40K BC CC
FINISHES
AP Aged Pewter
BA Brushed Aluminum
BC Brushed Chrome
PB Polished Brass		 PC Polished Chrome
PN Polished Nickel
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
PMD Perforated Metal Diffuser
WOG Opal Glass Diffuser
FAA Faux Alabaster Acrylic (Hand Painted) [FA1 White; FA2 Antique; FA3 Grey; FA4 Taupe; FA5 Honey; FA6 Tuscan]

LIGHT OUTPUT

LXX = ~ 88 LPW Delivered Lumens (Example: L14= 14W x 88LPW = 1,232 Lumens)
