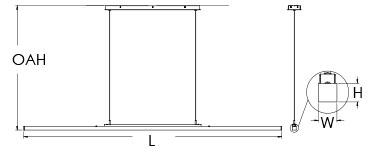

DIMENSIONS

OA Cable OC Spacing H W L BASE MODEL NO.
48″ 10″ 1 3/8″ 1 3/8″ 24″ S2C70-L16
48″ 10″ 1 3/8″ 1 3/8″ 36″ S2C71-L24
48″ 10″ 1 3/8″ 1 3/8″ 48″ S2C72-L32
48″ 24″ 1 3/8″ 1 3/8″ 60″ S2C73-L40
48″ 24″ 1 3/8″ 1 3/8″ 72″ S2C74-L48
48″ 24″ 1 3/8″ 1 3/8″ 96″ S2C75-L64
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Silicone Lens
• Power Over Cable Design
• Integral Driver in Canopy
• Aluminum Extrusion

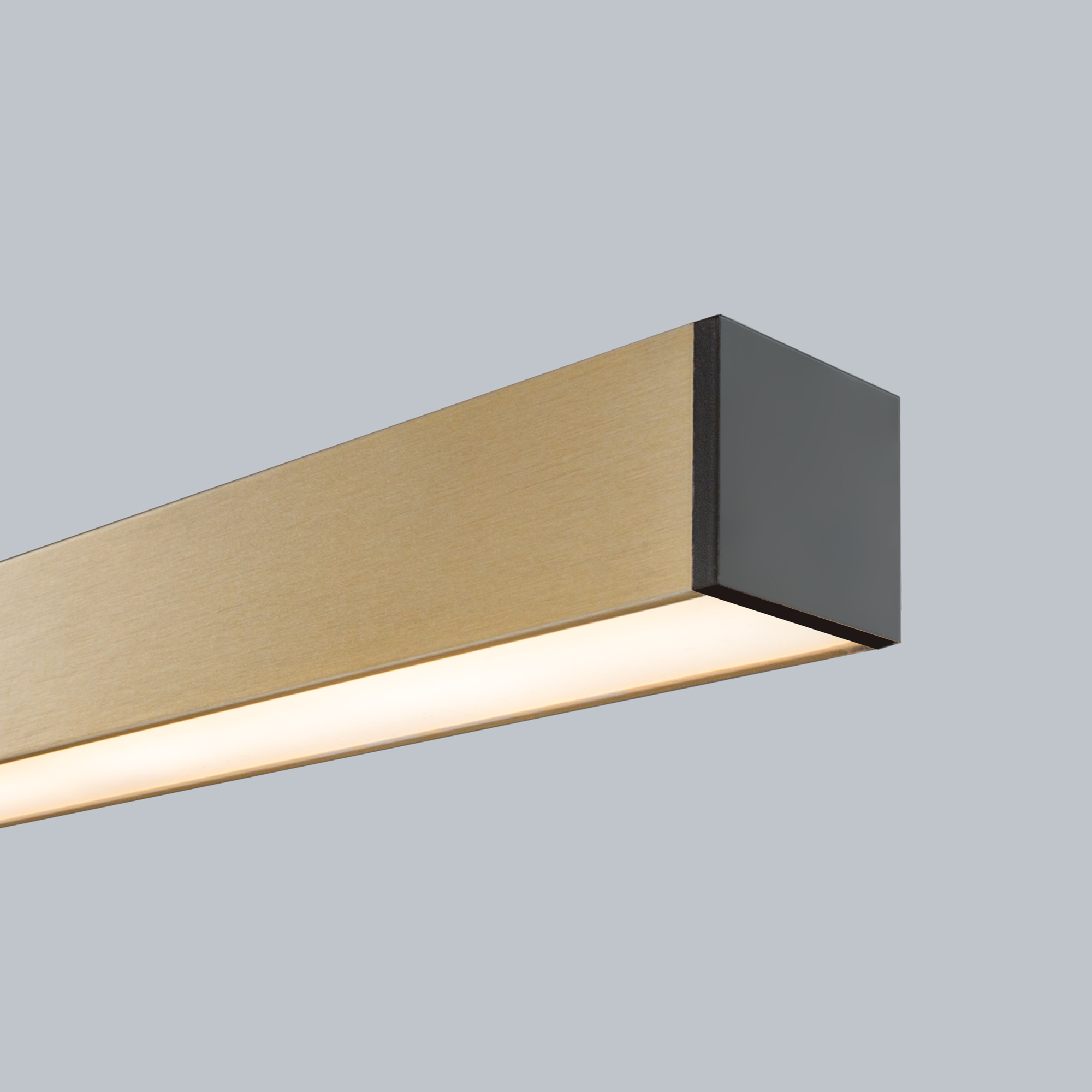

• Powder Coated Black End Caps
• Clean Line Styling
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S2C70-L16 + 27K + PT + Option
S2C71-L24 30K XT
S2C72-L32 35K
S2C73-L40 40K
S2C74-L48
S2C75-L64
FINISHES

PT Powder Coated Finishes*
XT Trending Brushed Metal Finishes*

*(Specify Color Code from the list of Finishes – ie. Gold Touch would be ‘GT’)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
OA Specify Overall Height of Fixture in Inches; Is not field adjustable – please confirm OAH; E.G. – OA96
REM – Remote Driver Mounting in box above the ceiling – with minimal mounting canopy.

LIGHT OUTPUT

LXX = ~ 70 LPW Delivered Lumens (Example: L24= 24W x 70 LPW = 1,680 Lumens)
