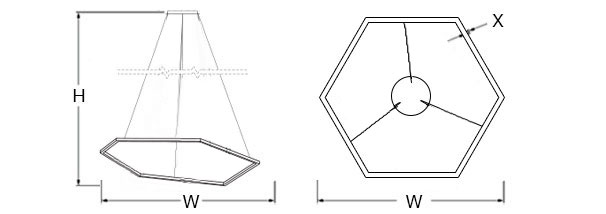

DIMENSIONS

W X H BASE MODEL NO.
32″ 1 3/8″ 72″ S2C25-L32
49″ 1 3/8″ 72″ S2C26-L48
60″ 1 3/8″ 72″ S2C27-L60
SPECIFICATIONS

Driver: 0-10V Dimming to 1%, 120/277 (Drivers are Remote)
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided (Additional structural blocking required for weight).

FEATURES

• Direct Illumination (indirect option)
• LED continuous appearance
• Flexible Silicone Opal Lens
• Clear Silver Braided Cord with (3) Adjustable Aircraft Cables
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish Code + OA +  Option Code

S2C25-L32 + 27K + PT + OA + Option
S2C26-L48 30K XT
S2C27-L60 35K CC
40K
FINISHES

PT Powder Coated Finishes*
XT Trending Brushed Metal Finishes*
CC Custom Painted Finish

*(Specify Color Code from the list of Finishes – ie. Gold Touch would be ‘GT’)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
OA Specify Overall Height of Fixture in Inches; E.G. – OA96
RU Ring Uplight – inverted ring
BK3 Black Cord with (3) Adjustable Aircraft Cables
WH3 White Cord with (3) Adjustable Aircraft Cables

LIGHT OUTPUT

LXX = ~60 LPW Delivered Lumens (Example: L48= 48W x 60LPW = 2,880 Lumens)
