Print This PageDIMENSIONS
| W | H | X | BASE MODEL NO. |
| 3″ | 96″ | 12″ | S2B40-L08 |
| 3″ | 96″ | 24″ | S2B41-L16 |
| 3″ | 96″ | 36″ | S2B42-L24 |
| 3″ | 96″ | 48″ | S2B43-L32 |
| 3″ | 120″ | 60″ | S2B44-L40 |
| 3″ | 120″ | 72″ | S2B45-L48 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277 [Excluding Downlight]
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided
FEATURES

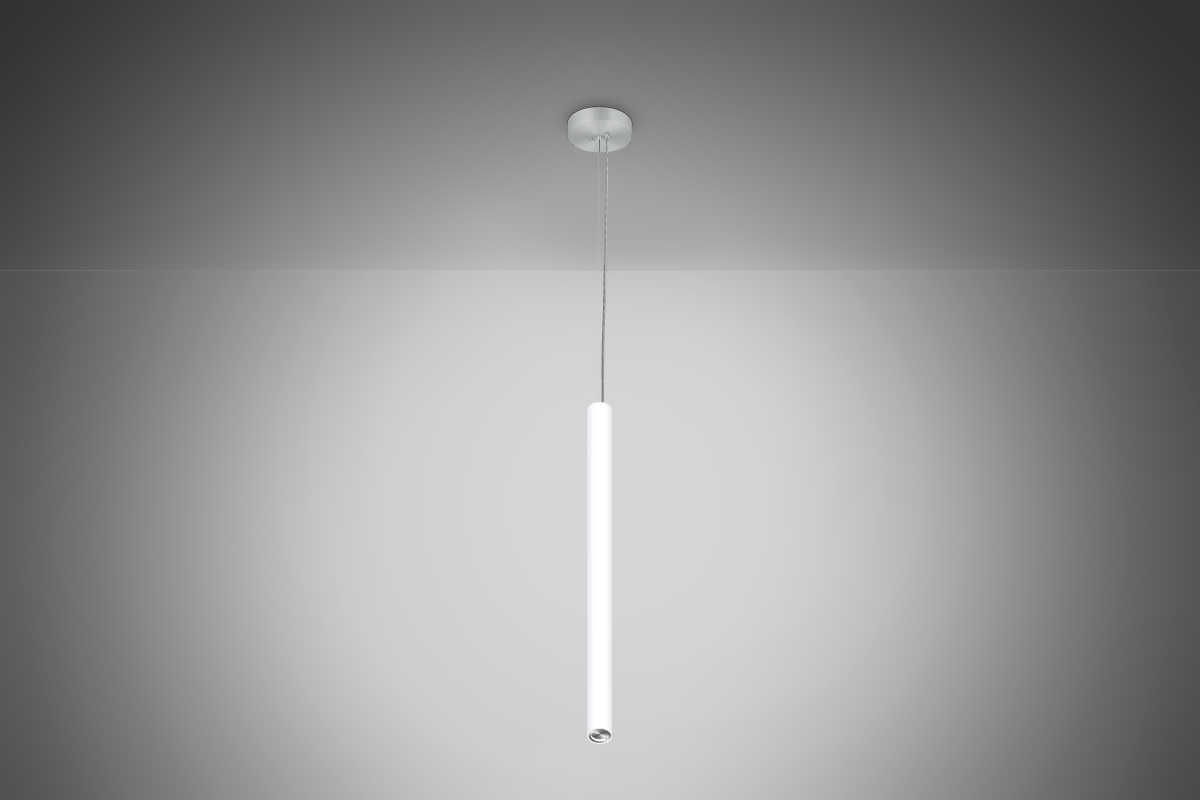

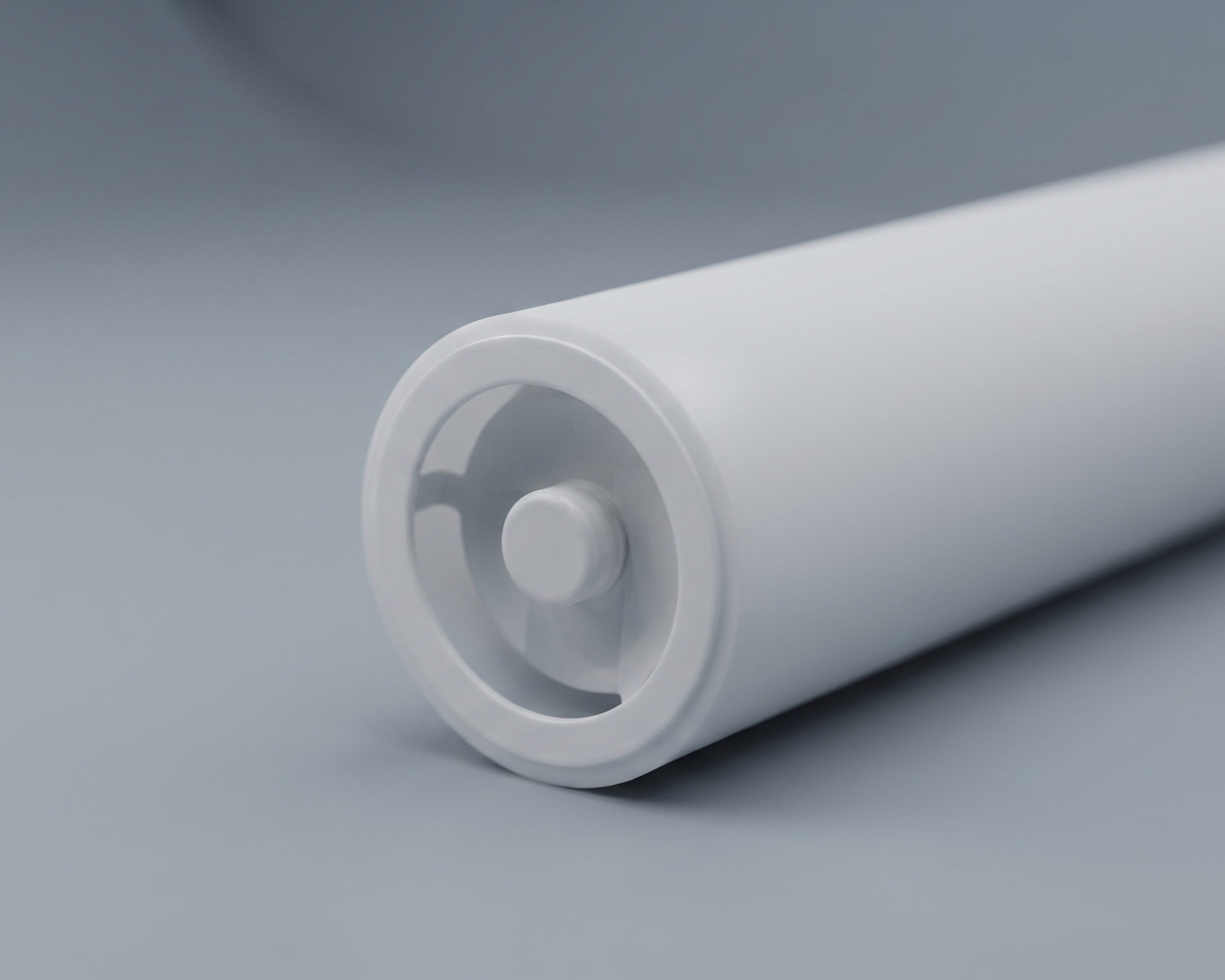

• Opal Matte Acrylic Cylinder
• Clear Silver Braided Cord with (1) Adjustable Aircraft Cable
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + Finish + OA + Option Code
| S2B40-L08 | + | 27K | + | PT | TT | + | OA | + | Option |
| S2B41-L16 | 30K | BA | PWT | ||||||
| S2B42-L24 | 35K | NT | BST | ||||||
| S2B43-L32 | 40K | GT | CC | ||||||
| S2B44-L40 | ZT | ||||||||
| S2B45-L48 | CT |
FINISHES
| BA Brushed Aluminum NT Nickel Touch GT Gold Touch ZT Bronze Touch CT Copper Touch |
TT Toffee Touch PWT Pewter Touch BST Blackened Steel Touch CC Custom Painted Finish PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup
1S Single Stem
LIGHT OUTPUT
LXX = ~ 105 LPW Delivered Lumens (Example: L24= 24 x 105 = 2,520 Lumens)
