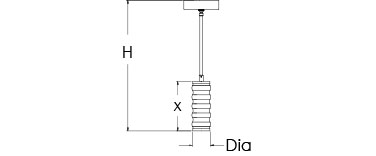

Print This PageDIMENSIONS
| X | Diffuser Qty | H | Dia | BASE MODEL NO. |
| 10 5/8″ | 1 | 60″ | 4″ | S2A75-L12 |
| 22 3/4″ | 2 | 60″ | 4″ | S2A76-L24 |
| 34 7/8″ | 3 | 60″ | 4″ | S2A77-L36 |
SPECIFICATIONS
Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.
FEATURES
• Opalized Curved Glass Cylinders
• Aluminum Construction
• Driver integral in the canopy
• LED 0-10V Dimming Driver
ORDER AS A COMPLETE UNIT:
Model No. + Lamp Code + CCT + Finish + Option Code
| S2A75-L12 | + | 27K | + | PT | ZT | + | Option |
| S2A76-L24 | 30K | BA | CT | ||||
| S2A77-L36 | 35K | BB | TT | ||||
| 40K | BN | PWT | |||||
| NT | BST | ||||||
| GT | CC |
FINISHES
| BA Brushed Aluminum BB Brushed Brass BN Brushed Nickel NT Nickel Touch GT Gold Touch ZT Bronze Touch |
CT Copper Touch TT Toffee Touch PWT Pewter Touch BST Blackened Steel Touch CC Custom Painted Finish PT Powder Coated Finishes* |
| *(Specify Color Code from the list of Powder Coating Finishes) | |
OPTIONS
BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
OA Specify Overall Height of Fixture in Inches; E.G. – OA48
LIGHT OUTPUT
LXX = ~ 80 LPW Delivered Lumens (Example: L12= 12W x 80LPW = 960 Lumens)
