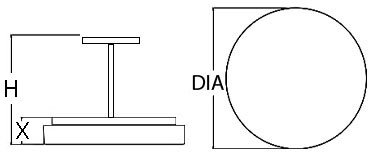

DIMENSIONS

X H Dia BASE MODEL NO.
5 3/8″ 48″ 24″ S2A55-L48
5 3/8″ 48″ 24″ S2A55-L60
5 3/8″ 48″ 30″ S2A56-L60
5 3/8″ 48″ 30″ S2A56-L72
5 3/8″ 60″ 36″ S2A57-L96
5 3/8″ 60″ 36″ S2A57-L120
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Opal Matte Acrylic Lens
• Integral Drivers
• Solid Aluminum Material
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish + Option Code

S2A55-L48 + 27K + PT + Option
S2A55-L60 30K NT
S2A56-L60 35K GT
S2A56-L72 40K CT
S2A57-L96 ZT
S2A57-L120 PWT
TT
FINISHES
NT Nickel Touch
GT Gold Touch
CT Copper Touch		 ZT Bronze Touch
PWT Pewter Touch
TT Toffee Touch
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
SB4 Clear Silver Braided Cord with (4) Adjustable Aircraft Cables
BK4 Black Cord with (4) Adjustable Aircraft Cable
WH4 White Cord with (4) Adjustable Aircraft Cable

LIGHT OUTPUT

LXX = ~ 100 LPW Delivered Lumens (Example: L48= 48W x 100LPW = 4,800 Lumens)
