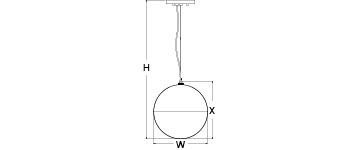

DIMENSIONS

W H X BASE MODEL NO.
14″ 60″ 14 3/4″ S2A05-L24
18″ 60″ 18 3/4″ S2A06-L32
22″ 60″ 22 3/4″ S2A07-L48
SPECIFICATIONS

Driver: 0-10V dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

• Clear Silver Braided Cord with Adjustable Aircraft Cable
• Opal Matte Acrylic
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Finish + OA +  Option Code

S2A05-L24 + 27K + PT CT + OA + Option
S2A06-L32 30K CC ZT
S2A07-L48 35K BA PWT
40K NT BST
GT TT
FINISHES

BA Brushed Aluminum
ZT Bronze Touch
NT Nickel Touch
GT Gold Touch
CT Copper Touch
PWT Pewter Touch
BST Blackened Steel Touch
TT Toffee Touch
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)

LIGHT OUTPUT

LXX = ~ 75 LPW Delivered Lumens (Example: L24= 24W x 75LPW = 1,800 Lumens)
