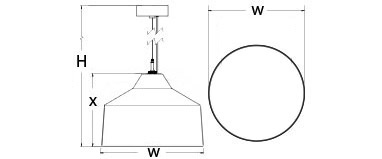

DIMENSIONS

Dia X H BASE MODEL NO.
16″ 16″ 96″ S2955-L24
SPECIFICATIONS

Driver: 0-10V Dimming to 1%, 120/277
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) With Hardware Provided.

FEATURES

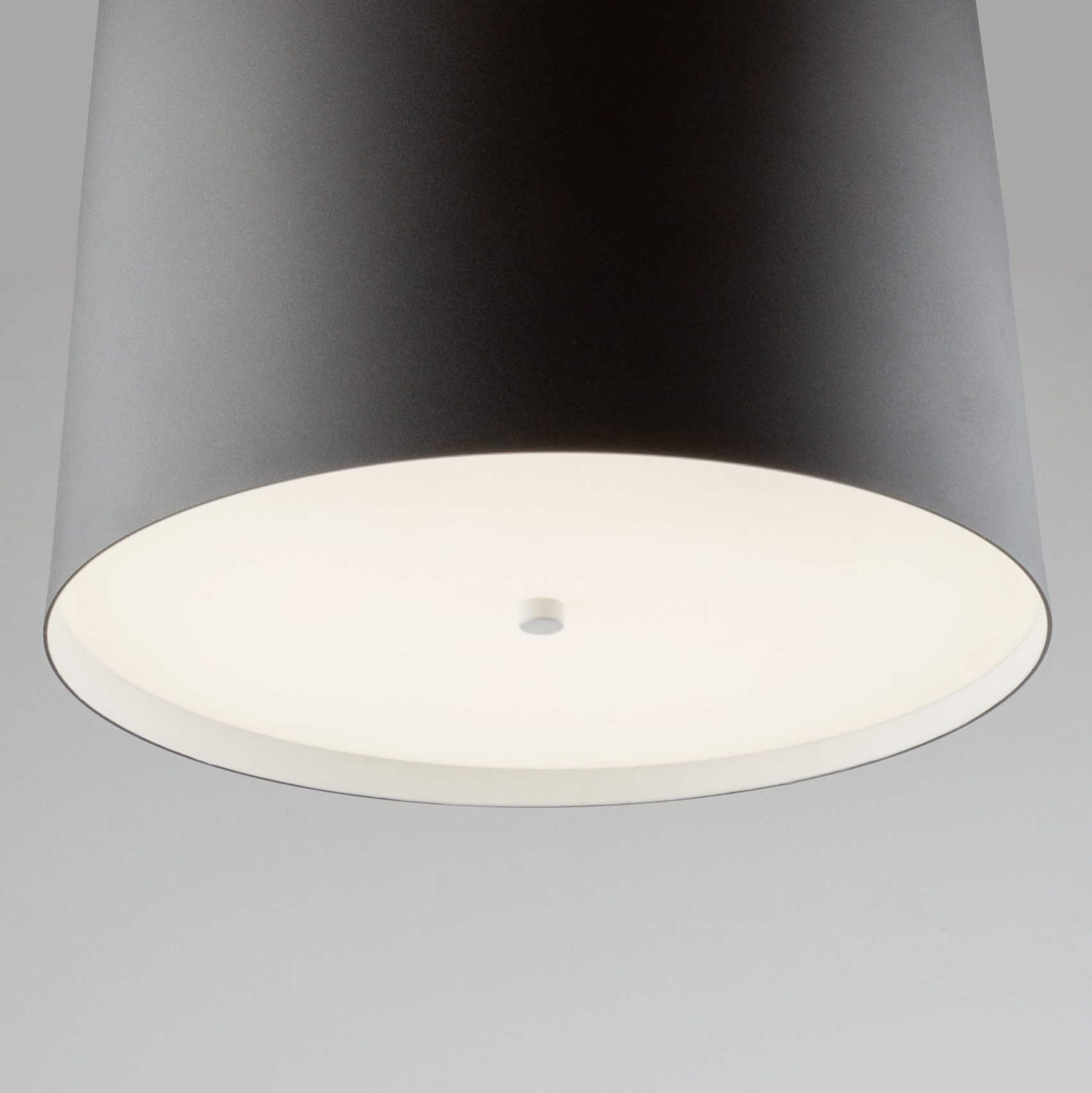

• Opal Matte Acrylic Interior Lens

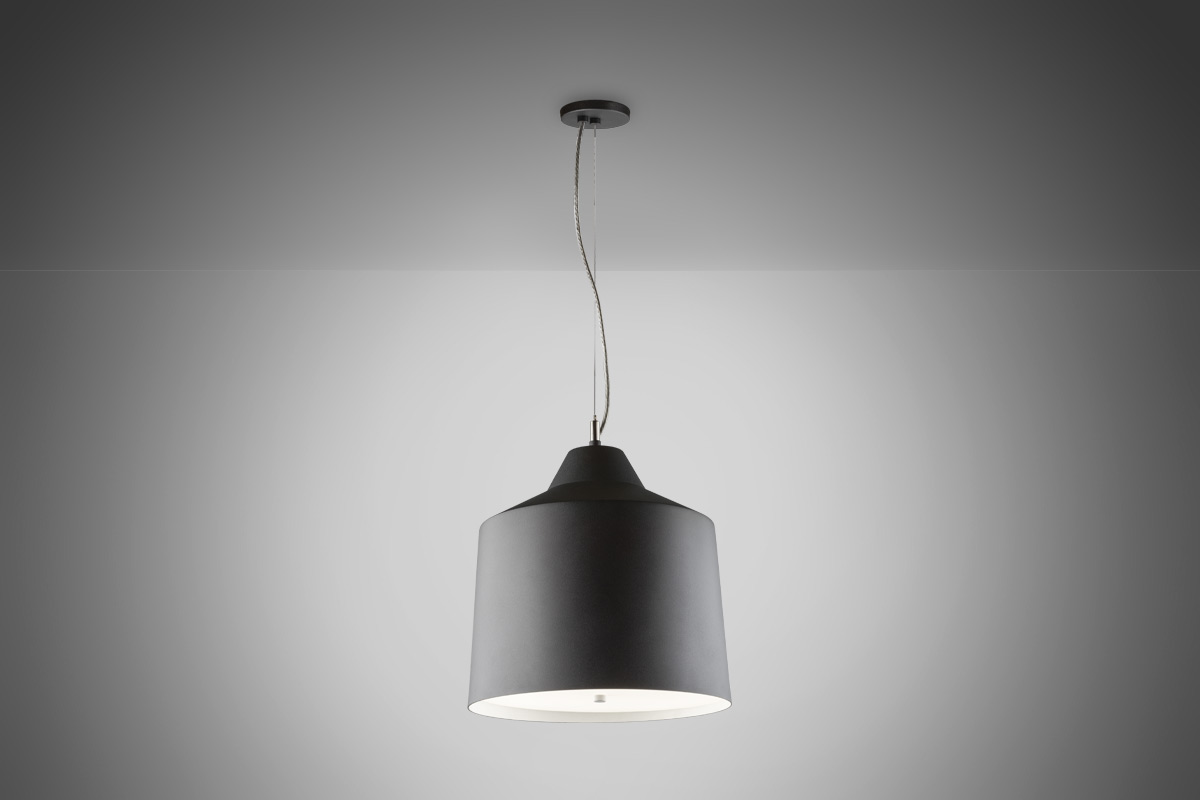

• Clear Silver Braided Cord with Adjustable Aircraft Cables
• Powdercoated Matte White Interior (Consult Factory for other options)
• Seamless Aluminum Material
• LED 0-10V Dimming Driver

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + CCT + Finish +  OA +  Option Code

S2955-L24 + 27K + PT CT + OA + Option
30K CC ZT
35K BA PWT
40K NT BST
GT TA
FINISHES
BA Brushed Aluminum
PC Polished Chrome
NT Nickel Touch
GT Gold Touch
ZT Bronze Touch
CT Copper Touch		 PWT Pewter Touch
BST Blackened Steel Touch
TA Textured Anthracite
CC Custom Painted Finish
PT Powder Coated Finishes*
*(Specify Color Code from the list of Powder Coating Finishes)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Requires Additional Power Cable)
1S Stem Mount
BK1 Black Cord with (1) Adjustable Aircraft Cable
WH1 White Cord with (1) Adjustable Aircraft Cable

LIGHT OUTPUT

LXX = ~ 84 LPW Delivered Lumens (Example: L24= 24W x 84LPW = 2,016 Lumens)
