DIMENSIONS

W H X BASE MODEL NO.
36″ 60″ 18″ S2950-36-1N150
36″ 60″ 18″ S2950-36-L24
36″ 60″ 18″ S2950-36-L42
48″ 60″ 24″ S2950-1N150
48″ 60″ 24″ S2950-L24
48″ 60″ 24″ S2950-L72
SPECIFICATIONS

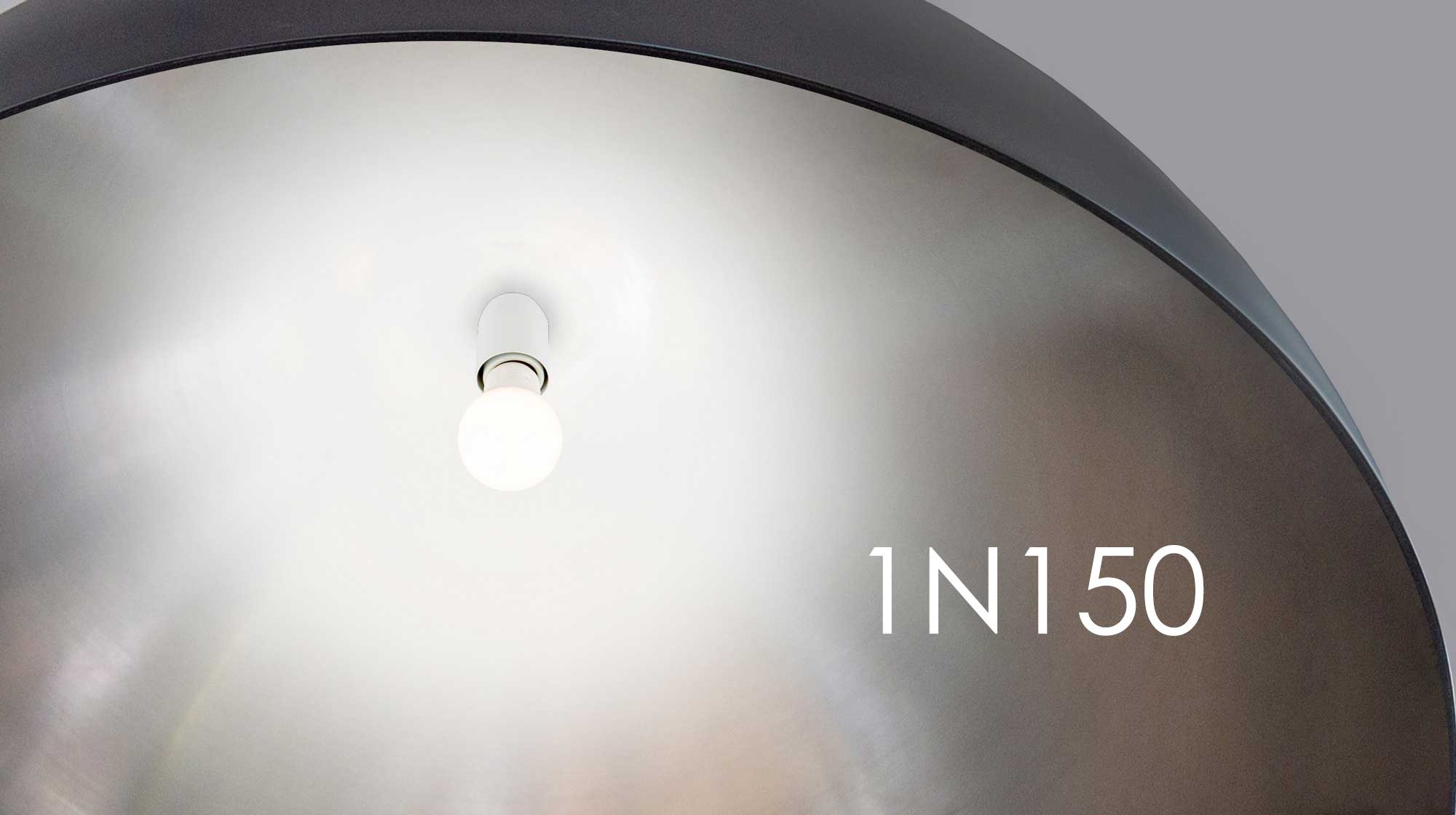

Control: 1N150 – ELV Only 120V Only

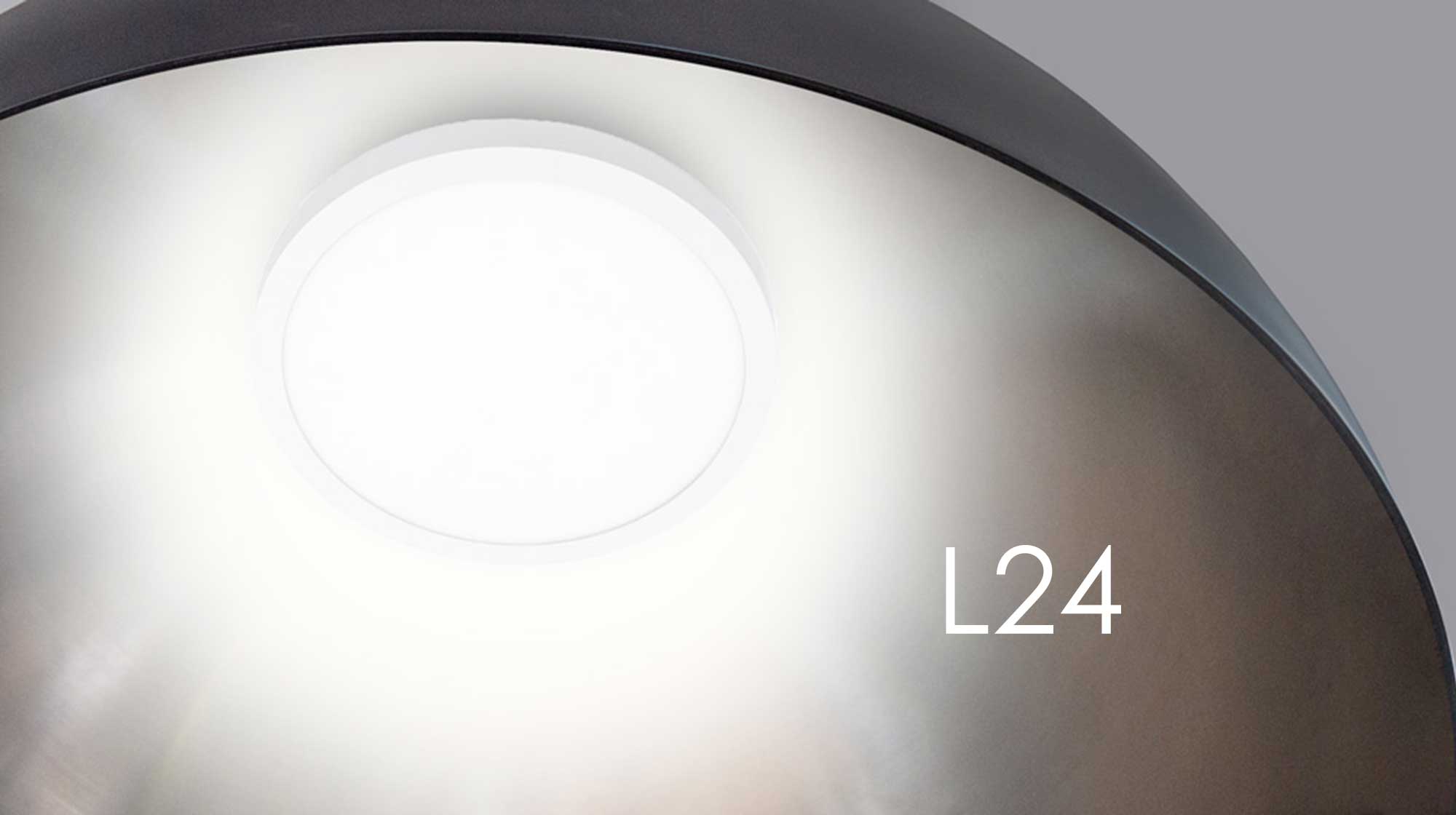

L24 – 0-10V 1%, 120/277V

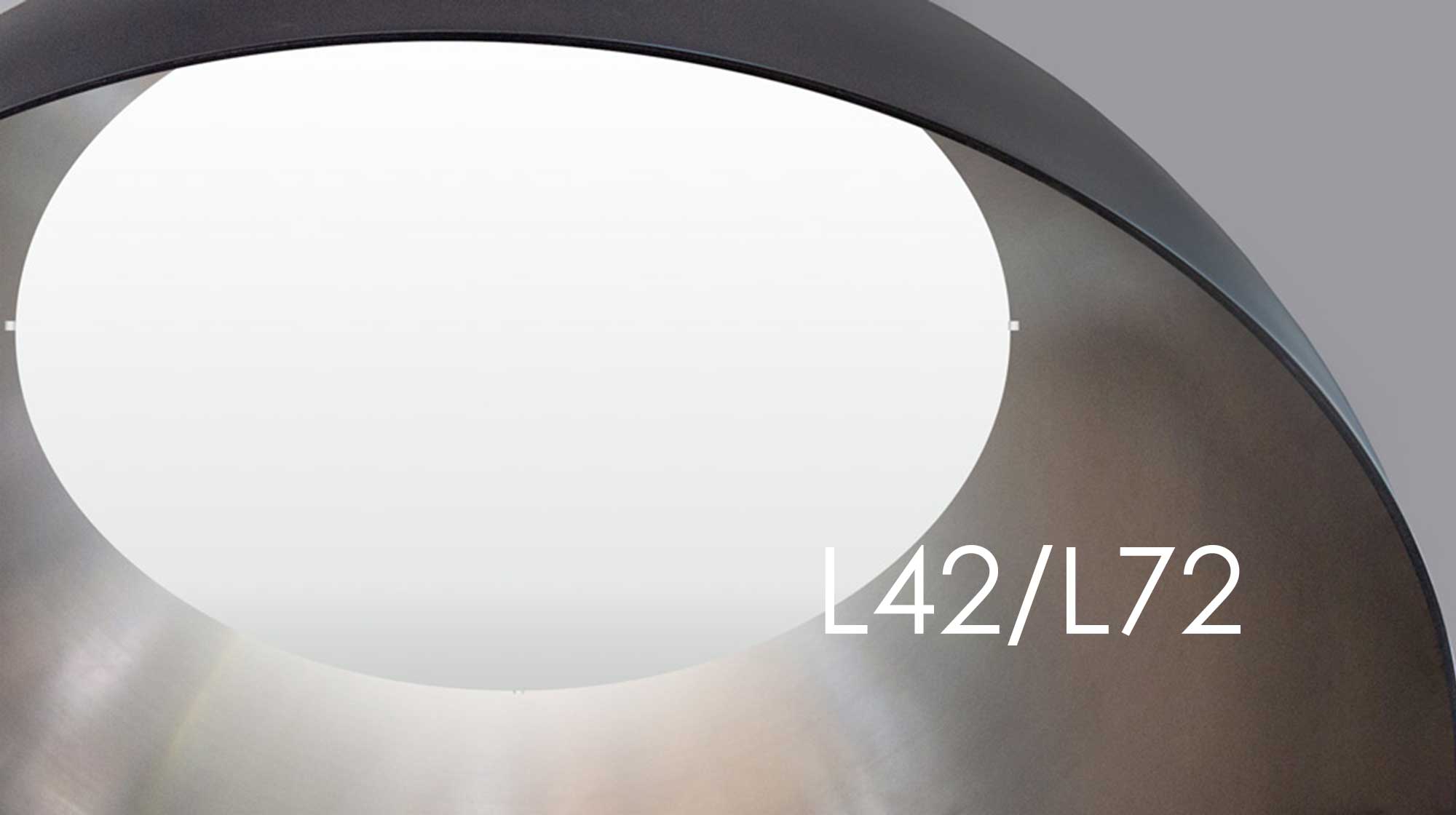

L42 – 0-10V 1%, 120/277V
L72 – 0-10V 1%, 120/277V
Mounting: Mounts to all Standard Electrical Junction Boxes (by others) with Hardware Provided

FEATURES

• Available in multiple mixed color options E.G. – BL-KH (Exterior-Interior)
• Clear Silver Braided Cord with (3) Adjustable Aircraft Cables
• Integral Driver
• Lens Options as Shown
• No Visible Hardware at the Aperture
• Spun Aluminum Shade

ORDER AS A COMPLETE UNIT:

Model No. + Lamp Code + Exterior Finish + Interior Finish + Option Code

S2950-36-1N150 + 27K + PT + PT + Option
S2950-36-L24 30K
S2950-36-L42 35K
S2950-1N150 40K
S2950-L24
S2950-L72
FINISHES

PT Powder Coated Finishes*

*(Specify Color Code from the list of Finishes – ie. Gold Touch would be ‘GT’)
OPTIONS

BAC Buy America; Buy American Act; and Build America, Buy America Act Compliant.
EML Remote 10W Emergency LED Battery Backup (Available for L24 and L48 options only)
OA Specify Overall Height of Fixture in Inches; E.G. – OA50
BK3 Black Cord with (3) Adjustable Aircraft Cables
WH3 White Cord with (3) Adjustable Aircraft Cables

LIGHT OUTPUT

LXX = ~ 85 LPW Delivered Lumens (Example: L42= 42W x 85LPW = 3,570 Lumens)
Note: Interior Finish may affect output for 1N150, see lamp information.
